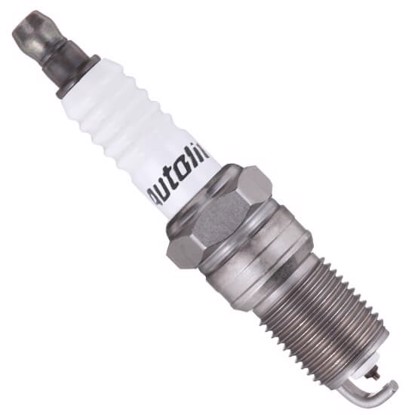

Autolite XP5245 Spark Plug

View on

Verify with Amazon ConfirmedFit before buying

Rating

4.2 / 5 Overall
Autolite	XP5245
Brand	Code
4.5 / 5 Materials
Platinum	Iridium-Platinum
Ground electrode	Center electrode
3.5 / 5 Design
Standard	Fine Wire
Ground type	Center type

Specifications

1.15mm (.045")	3
Gap	Heat range
⌀14mm	1.25mm
Thread diameter	Thread pitch
18mm (.709")	16mm (5/8")
Reach	Hex size
Tapered	Solid
Seat	Terminal
1	Non-Projected
Ground count	Projection

Cross-reference and alternatives

Cross-reference (2)

Alternative spark plugs found in cross-reference docs provided by manufacturers

HR9LI33U

Copper-Iridium

3.8/ 5

.039"17.5mm, ⌀14x1.25HR 9

TR4IX

Copper-Iridium

3.8/ 5

.039"18mm, ⌀14x1.25HR 4

Deep reference (8)

A second level of cross-reference: if A=B and B=C, then A=C

HR9LII33X

Iridium

4.5/ 5

.043"17.5mm, ⌀14x1.25HR 9

IZTR5B11

Iridium-Platinum

-

4.2/ 5

.043"18mm, ⌀14x1.25HR 5

VT16

Iridium-Platinum

-

4.2/ 5

.043"17.5mm, ⌀14x1.25HR 16

RS14PYP

Platinum

3.8/ 5

.043"17.5mm, ⌀14x1.25HR 14

HR9DPX

Copper-Platinum

3.3/ 5

.043"17.5mm, ⌀14x1.25HR 9

T16EPR-U

Copper

3.3/ 5

.031"18mm, ⌀14x1.25HR 16

T20EPR-U

Copper

3.3/ 5

.031"18mm, ⌀14x1.25HR 20

T20EP-U

Copper

3.3/ 5

.031"18mm, ⌀14x1.25HR 20

Same specs (13)

Products that have identical characteristics that impact interchangability

XP5243

Iridium-Platinum

-

4.2/ 5

.045"18mm, ⌀14x1.25HR 1

XP5243DP2

Iridium-Platinum

-

4.2/ 5

.045"18mm, ⌀14x1.25HR 1

XP5245DP2

Iridium-Platinum

-

4.2/ 5

.045"18mm, ⌀14x1.25HR 3

APP5243

Platinum

3.5/ 5

.045"18mm, ⌀14x1.25HR 1

APP5245

Platinum

3.5/ 5

.045"18mm, ⌀14x1.25HR 3

APP5245DP2

Platinum

3.5/ 5

.045"18mm, ⌀14x1.25HR 3

AP5243

Copper-Platinum

3.2/ 5

.045"18mm, ⌀14x1.25HR 1

AP5245

Copper-Platinum

3.2/ 5

.045"18mm, ⌀14x1.25HR 3

AP5245DP2

Copper-Platinum

3.2/ 5

.045"18mm, ⌀14x1.25HR 3

5243

Copper

2.9/ 5

.045"18mm, ⌀14x1.25HR 1

5245

Copper

2.9/ 5

.045"18mm, ⌀14x1.25HR 3

5245BP

Copper

2.9/ 5

.045"18mm, ⌀14x1.25HR 3

5245DP2

Copper

2.9/ 5

.045"18mm, ⌀14x1.25HR 3

Bigger gap (20)

0.1..0.3 mm gap increase for better performance given your ignition system can handle it

XP5145DP2

Iridium-Platinum

-

4.2/ 5

.055"18mm, ⌀14x1.25HR 3

XP5145

Iridium-Platinum

-

4.2/ 5

.055"18mm, ⌀14x1.25HR 3

XP5144DP2

Iridium-Platinum

-

4.2/ 5

.055"18mm, ⌀14x1.25HR 2

XP5144

Iridium-Platinum

-

4.2/ 5

.055"18mm, ⌀14x1.25HR 2

XP5143

Iridium-Platinum

-

4.2/ 5

.055"18mm, ⌀14x1.25HR 1

APP5145

Platinum

3.5/ 5

.055"18mm, ⌀14x1.25HR 3

APP5144DP2

Platinum

3.5/ 5

.055"18mm, ⌀14x1.25HR 2

APP5144

Platinum

3.5/ 5

.055"18mm, ⌀14x1.25HR 2

APP5143

Platinum

3.5/ 5

.055"18mm, ⌀14x1.25HR 1

AP5145DP2

Copper-Platinum

3.2/ 5

.055"18mm, ⌀14x1.25HR 3

AP5145

Copper-Platinum

3.2/ 5

.055"18mm, ⌀14x1.25HR 3

AP5144DP2

Copper-Platinum

3.2/ 5

.055"18mm, ⌀14x1.25HR 2

AP5144

Copper-Platinum

3.2/ 5

.055"18mm, ⌀14x1.25HR 2

AP5143DP2

Copper-Platinum

3.2/ 5

.055"18mm, ⌀14x1.25HR 1

AP5143

Copper-Platinum

3.2/ 5

.055"18mm, ⌀14x1.25HR 1

5143

Copper

2.9/ 5

.055"18mm, ⌀14x1.25HR 1

5144DP2

Copper

2.9/ 5

.055"18mm, ⌀14x1.25HR 2

5144BP

Copper

2.9/ 5

.055"18mm, ⌀14x1.25HR 2

5144

Copper

2.9/ 5

.055"18mm, ⌀14x1.25HR 2

5143BP

Copper

2.9/ 5

.055"18mm, ⌀14x1.25HR 1
