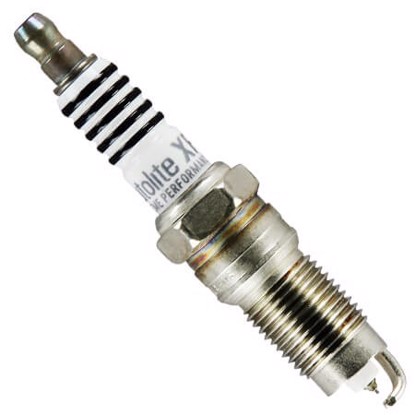

Autolite XP5145DP2 Spark Plug

View on

Verify with Amazon ConfirmedFit before buying

Rating

4.2 / 5 Overall
Autolite	XP5145DP2
Brand	Code
4.5 / 5 Materials
Platinum	Iridium-Platinum
Ground electrode	Center electrode
3.5 / 5 Design
Standard	Fine Wire
Ground type	Center type

Specifications

1.4mm (.055")	3
Gap	Heat range
⌀14mm	1.25mm
Thread diameter	Thread pitch
18mm (.709")	16mm (5/8")
Reach	Hex size
Tapered	Solid
Seat	Terminal
1	Non-Projected
Ground count	Projection

Cross-reference and alternatives

Cross-reference (1)

Alternative spark plugs found in cross-reference docs provided by manufacturers

TR5-1IX

Copper-Iridium

3.8/ 5

.039"18mm, ⌀14x1.25HR 5

Deep reference (25)

A second level of cross-reference: if A=B and B=C, then A=C

HR8JII33V

Iridium

4.5/ 5

.050"17.5mm, ⌀14x1.25HR 8

IT20

Copper-Iridium

4.3/ 5

.043"17.5mm, ⌀14x1.25HR 20

XP5143

Iridium-Platinum

-

4.2/ 5

.055"18mm, ⌀14x1.25HR 1

XP5144

Iridium-Platinum

-

4.2/ 5

.055"18mm, ⌀14x1.25HR 2

XP5144DP2

Iridium-Platinum

-

4.2/ 5

.055"18mm, ⌀14x1.25HR 2

XP5145

Iridium-Platinum

-

4.2/ 5

.055"18mm, ⌀14x1.25HR 3

VT20

Iridium-Platinum

-

4.2/ 5

.043"17.5mm, ⌀14x1.25HR 20

RS14PLP

Platinum

3.8/ 5

.053"18mm, ⌀14x1.25HR 14

RS12PLP

Platinum

3.6/ 5

.059"18mm, ⌀14x1.25HR 12

APP5145

Platinum

3.5/ 5

.055"18mm, ⌀14x1.25HR 3

AP2544

Copper-Platinum

3.2/ 5

.045"18mm, ⌀14x1.25HR 2

AP2545

Copper-Platinum

3.2/ 5

.045"18mm, ⌀14x1.25HR 3

AP2546

Copper-Platinum

3.2/ 5

.055"18mm, ⌀14x1.25HR 4

AP5143

Copper-Platinum

3.2/ 5

.055"18mm, ⌀14x1.25HR 1

AP5144

Copper-Platinum

3.2/ 5

.055"18mm, ⌀14x1.25HR 2

AP764

Copper-Platinum

3.2/ 5

.045"17.5mm, ⌀14x1.25HR 2

AP765

Copper-Platinum

3.2/ 5

.045"17.5mm, ⌀14x1.25HR 3

AP766

Copper-Platinum

3.2/ 5

.045"17.5mm, ⌀14x1.25HR 4

HR8LPX

Copper-Platinum

3.0/ 5

.043"17.5mm, ⌀14x1.25HR 8

HR9LPX

Copper-Platinum

3.0/ 5

.043"17.5mm, ⌀14x1.25HR 9

2544

Copper

2.9/ 5

.045"18mm, ⌀14x1.25HR 2

2545

Copper

2.9/ 5

.045"18mm, ⌀14x1.25HR 3

2546

Copper

2.9/ 5

.055"18mm, ⌀14x1.25HR 4

5143

Copper

2.9/ 5

.055"18mm, ⌀14x1.25HR 1

RS10LC

Copper

2.9/ 5

.043"21mm, ⌀14x1.25HR 10

Same specs (19)

Products that have identical characteristics that impact interchangability

XP5145

Iridium-Platinum

-

4.2/ 5

.055"18mm, ⌀14x1.25HR 3

XP5144DP2

Iridium-Platinum

-

4.2/ 5

.055"18mm, ⌀14x1.25HR 2

XP5144

Iridium-Platinum

-

4.2/ 5

.055"18mm, ⌀14x1.25HR 2

XP5143

Iridium-Platinum

-

4.2/ 5

.055"18mm, ⌀14x1.25HR 1

APP5145

Platinum

3.5/ 5

.055"18mm, ⌀14x1.25HR 3

APP5144DP2

Platinum

3.5/ 5

.055"18mm, ⌀14x1.25HR 2

APP5144

Platinum

3.5/ 5

.055"18mm, ⌀14x1.25HR 2

APP5143

Platinum

3.5/ 5

.055"18mm, ⌀14x1.25HR 1

AP5145

Copper-Platinum

3.2/ 5

.055"18mm, ⌀14x1.25HR 3

AP5145DP2

Copper-Platinum

3.2/ 5

.055"18mm, ⌀14x1.25HR 3

AP5144DP2

Copper-Platinum

3.2/ 5

.055"18mm, ⌀14x1.25HR 2

AP5144

Copper-Platinum

3.2/ 5

.055"18mm, ⌀14x1.25HR 2

AP5143DP2

Copper-Platinum

3.2/ 5

.055"18mm, ⌀14x1.25HR 1

AP5143

Copper-Platinum

3.2/ 5

.055"18mm, ⌀14x1.25HR 1

5143

Copper

2.9/ 5

.055"18mm, ⌀14x1.25HR 1

5144DP2

Copper

2.9/ 5

.055"18mm, ⌀14x1.25HR 2

5144BP

Copper

2.9/ 5

.055"18mm, ⌀14x1.25HR 2

5144

Copper

2.9/ 5

.055"18mm, ⌀14x1.25HR 2

5143BP

Copper

2.9/ 5

.055"18mm, ⌀14x1.25HR 1
