Autolite AP5143 Spark Plug

Home → Spark Plugs → Autolite → AP5143

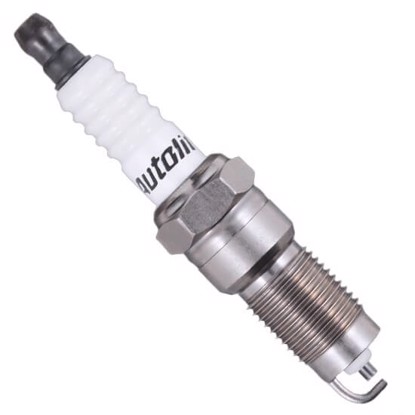

Autolite AP5143 image
Verify with Amazon ConfirmedFit before buying
Rating
3.2 / 5
Overall
Autolite AP5143
Brand Code
3.5 / 5
Materials
Copper Platinum
Ground electrode Center electrode
2.5 / 5
Design
Standard Necked Down
Ground type Center type
Specifications
1.4mm (.055") 1
Gap Heat range
⌀14mm 1.25mm
Thread diameter Thread pitch
18mm (.709") 16mm (5/8")
Reach Hex size
Tapered Solid
Seat Terminal
1 Non-Projected
Ground count Projection

Cross-reference and alternatives

How we find alternative spark plugs How we rate spark plugs

Cross-reference (6)

Alternative spark plugs found in cross-reference docs provided by manufacturers
Copper-Iridium
4.3 / 5
.043" 17.5mm, ⌀14x1.25 HR 20
Iridium-Platinum
4.2 / 5
.043" 17.5mm, ⌀14x1.25 HR 20
Copper-Iridium
3.8 / 5
.039" 18mm, ⌀14x1.25 HR 5
Copper-Platinum
3.5 / 5
.039" 18mm, ⌀14x1.25 HR 5
Copper-Platinum
3.5 / 5
.059" 18mm, ⌀14x1.25 HR 5
Copper-Platinum
3.0 / 5
.043" 17.5mm, ⌀14x1.25 HR 9

Deep reference (105)

A second level of cross-reference: if A=B and B=C, then A=C
Iridium
4.5 / 5
.050" 17.5mm, ⌀14x1.25 HR 8
Copper-Iridium
4.3 / 5
.043" 17.5mm, ⌀14x1.25 HR 20
Iridium-Platinum
4.2 / 5
.050" 17.5mm, ⌀14x1.25 HR 2
Iridium-Platinum
4.2 / 5
.059" 17.5mm, ⌀14x1.25 HR 3
Iridium-Platinum
4.2 / 5
.055" 18mm, ⌀14x1.25 HR 1
Iridium-Platinum
4.2 / 5
.055" 18mm, ⌀14x1.25 HR 2
Iridium-Platinum
4.2 / 5
.055" 18mm, ⌀14x1.25 HR 2
Iridium-Platinum
4.2 / 5
.055" 18mm, ⌀14x1.25 HR 3
Iridium-Platinum
4.2 / 5
.055" 18mm, ⌀14x1.25 HR 3
Iridium-Platinum
4.2 / 5
.043" 17.5mm, ⌀14x1.25 HR 20
Iridium-Platinum
4.2 / 5
.043" 17.5mm, ⌀14x1.25 HR 16
Copper-Iridium
3.8 / 5
.039" 18mm, ⌀14x1.25 HR 5
Copper-Iridium
3.8 / 5
.039" 18mm, ⌀14x1.25 HR 6
Copper-Iridium
3.8 / 5
.039" 18mm, ⌀14x1.25 HR 5
Copper-Iridium
3.8 / 5
.039" 18mm, ⌀14x1.25 HR 6
Platinum
3.8 / 5
.053" 18mm, ⌀14x1.25 HR 14
Platinum
3.8 / 5
.050" 17.5mm, ⌀14x1.25 HR 8
Copper-Iridium
3.8 / 5
.039" 18mm, ⌀14x1.25 HR 5
Platinum
3.6 / 5
.059" 18mm, ⌀14x1.25 HR 12
Copper-Platinum
3.5 / 5
.059" 18mm, ⌀14x1.25 HR 5
Copper-Platinum
3.5 / 5
.059" 18mm, ⌀14x1.25 HR 5
Copper-Platinum
3.5 / 5
.039" 18mm, ⌀14x1.25 HR 6
Platinum
3.5 / 5
.055" 18mm, ⌀14x1.25 HR 2
Copper-Platinum
3.5 / 5
.059" 18mm, ⌀14x1.25 HR 5
Copper-Platinum
3.5 / 5
.059" 18mm, ⌀14x1.25 HR 5
Copper-Platinum
3.5 / 5
.039" 18mm, ⌀14x1.25 HR 6
Platinum
3.5 / 5
.055" 18mm, ⌀14x1.25 HR 2
Platinum
3.5 / 5
.055" 18mm, ⌀14x1.25 HR 3
Platinum
3.5 / 5
.045" 18mm, ⌀14x1.25 HR 2
Platinum
3.5 / 5
.045" 18mm, ⌀14x1.25 HR 3
Platinum
3.5 / 5
.055" 18mm, ⌀14x1.25 HR 4
Platinum
3.5 / 5
.055" 18mm, ⌀14x1.25 HR 2
Platinum
3.5 / 5
.055" 18mm, ⌀14x1.25 HR 2
Platinum
3.5 / 5
.055" 18mm, ⌀14x1.25 HR 1
Platinum
3.5 / 5
.055" 18mm, ⌀14x1.25 HR 2
Copper-Platinum
3.5 / 5
.050" 17.5mm, ⌀14x1.25 HR 8
Copper-Platinum
3.5 / 5
.039" 18mm, ⌀14x1.25 HR 5
Copper-Silver
3.3 / 5
.024" 17.5mm, ⌀14x1.25 HR 6
Copper
3.3 / 5
.026" 17.5mm, ⌀14x1.25 HR 9
Copper-Silver
3.3 / 5
.024" 17.5mm, ⌀14x1.25 HR 6
Copper
3.3 / 5
.026" 17.5mm, ⌀14x1.25 HR 9
Copper-Platinum
3.3 / 5
.043" 19mm, ⌀14x1.25 HR 8
Copper-Platinum
3.3 / 5
.043" 19mm, ⌀14x1.25 HR 9
Copper
3.3 / 5
.043" 18mm, ⌀14x1.25 HR 16
Copper
-
3.2 / 5
.063" 17.5mm, ⌀14x1.25 HR 7
Copper
-
3.2 / 5
.063" 17.5mm, ⌀14x1.25 HR 7
Copper-Platinum
-
3.2 / 5
.045" 18mm, ⌀14x1.25 HR 2
Copper-Platinum
-
3.2 / 5
.045" 18mm, ⌀14x1.25 HR 3
Copper-Platinum
-
3.2 / 5
.055" 18mm, ⌀14x1.25 HR 4
Copper-Platinum
-
3.2 / 5
.055" 18mm, ⌀14x1.25 HR 2
Copper-Platinum
-
3.2 / 5
.045" 17.5mm, ⌀14x1.25 HR 2
Copper-Platinum
-
3.2 / 5
.045" 17.5mm, ⌀14x1.25 HR 3
Copper-Platinum
-
3.2 / 5
.045" 17.5mm, ⌀14x1.25 HR 4
Copper-Platinum
-
3.2 / 5
.045" 18mm, ⌀14x1.25 HR 2
Copper-Platinum
-
3.2 / 5
.045" 18mm, ⌀14x1.25 HR 3
Copper-Platinum
-
3.2 / 5
.055" 18mm, ⌀14x1.25 HR 4
Copper-Platinum
-
3.2 / 5
.055" 18mm, ⌀14x1.25 HR 2
Copper-Platinum
-
3.2 / 5
.055" 18mm, ⌀14x1.25 HR 2
Copper-Platinum
-
3.2 / 5
.055" 18mm, ⌀14x1.25 HR 3
Copper-Platinum
-
3.2 / 5
.055" 18mm, ⌀14x1.25 HR 3
Copper-Platinum
-
3.2 / 5
.045" 17.5mm, ⌀14x1.25 HR 2
Copper-Platinum
-
3.2 / 5
.045" 17.5mm, ⌀14x1.25 HR 3
Copper-Platinum
-
3.2 / 5
.045" 17.5mm, ⌀14x1.25 HR 4
Copper-Platinum
-
3.2 / 5
.055" 18mm, ⌀14x1.25 HR 2
Copper-Platinum
-
3.2 / 5
.055" 18mm, ⌀14x1.25 HR 3
Copper-Platinum
-
3.2 / 5
.059" 17.5mm, ⌀14x1.25 HR 3
Copper-Platinum
-
3.2 / 5
.045" 18mm, ⌀14x1.25 HR 2
Copper-Platinum
-
3.2 / 5
.055" 18mm, ⌀14x1.25 HR 2
Copper
3.1 / 5
.039" 18mm, ⌀14x1.25 HR 5
Copper
3.1 / 5
.039" 18mm, ⌀14x1.25 HR 6
Copper
3.1 / 5
.039" 18mm, ⌀14x1.25 HR 5
Copper
3.1 / 5
.039" 18mm, ⌀14x1.25 HR 6
Copper-Platinum
3.0 / 5
.043" 17.5mm, ⌀14x1.25 HR 8
Copper-Platinum
3.0 / 5
.043" 17.5mm, ⌀14x1.25 HR 9
Copper-Platinum
3.0 / 5
.043" 17.5mm, ⌀14x1.25 HR 9
Copper-Platinum
3.0 / 5
.043" 17.5mm, ⌀14x1.25 HR 8
Copper
2.9 / 5
.031" 18mm, ⌀14x1.25 HR 6
Copper
2.9 / 5
.026" 18mm, ⌀14x1.25 HR 6
Copper
2.9 / 5
.031" 18mm, ⌀14x1.25 HR 6
Copper
2.9 / 5
.050" 17.5mm, ⌀14x1.25 HR 1
Copper
2.9 / 5
.050" 17.5mm, ⌀14x1.25 HR 2
Copper
2.9 / 5
.045" 18mm, ⌀14x1.25 HR 2
Copper
2.9 / 5
.055" 18mm, ⌀14x1.25 HR 1
Copper
2.9 / 5
.055" 18mm, ⌀14x1.25 HR 2
Copper
2.9 / 5
.045" 17.5mm, ⌀14x1.25 HR 2
Copper
2.9 / 5
.035" 19mm, ⌀14x1.25 HR 4
Copper
2.9 / 5
.043" 21mm, ⌀14x1.25 HR 10
Copper
2.9 / 5
.035" 17.5mm, ⌀14x1.25 HR 9
Copper
2.9 / 5
.031" 18mm, ⌀14x1.25 HR 6
Copper
2.9 / 5
.026" 18mm, ⌀14x1.25 HR 6
Copper
2.9 / 5
.031" 18mm, ⌀14x1.25 HR 6
Copper
2.9 / 5
.050" 17.5mm, ⌀14x1.25 HR 1
Copper
2.9 / 5
.050" 17.5mm, ⌀14x1.25 HR 2
Copper
2.9 / 5
.045" 18mm, ⌀14x1.25 HR 2
Copper
2.9 / 5
.055" 18mm, ⌀14x1.25 HR 1
Copper
2.9 / 5
.055" 18mm, ⌀14x1.25 HR 2
Copper
2.9 / 5
.045" 17.5mm, ⌀14x1.25 HR 2
Copper
2.9 / 5
.035" 19mm, ⌀14x1.25 HR 4
Copper
2.9 / 5
.043" 21mm, ⌀14x1.25 HR 10
Copper
2.9 / 5
.035" 17.5mm, ⌀14x1.25 HR 9
Copper
2.9 / 5
.045" 18mm, ⌀14x1.25 HR 2
Copper
2.9 / 5
.045" 18mm, ⌀14x1.25 HR 3
Copper
2.9 / 5
.055" 18mm, ⌀14x1.25 HR 4
Copper
2.9 / 5
.055" 18mm, ⌀14x1.25 HR 1
Copper
2.9 / 5
.043" 21mm, ⌀14x1.25 HR 10

Same specs (19)

Products that have identical characteristics that impact interchangability
Iridium-Platinum
4.2 / 5
.055" 18mm, ⌀14x1.25 HR 3
Iridium-Platinum
4.2 / 5
.055" 18mm, ⌀14x1.25 HR 3
Iridium-Platinum
4.2 / 5
.055" 18mm, ⌀14x1.25 HR 2
Iridium-Platinum
4.2 / 5
.055" 18mm, ⌀14x1.25 HR 2
Iridium-Platinum
4.2 / 5
.055" 18mm, ⌀14x1.25 HR 1
Platinum
3.5 / 5
.055" 18mm, ⌀14x1.25 HR 3
Platinum
3.5 / 5
.055" 18mm, ⌀14x1.25 HR 2
Platinum
3.5 / 5
.055" 18mm, ⌀14x1.25 HR 2
Platinum
3.5 / 5
.055" 18mm, ⌀14x1.25 HR 1
Copper-Platinum
-
3.2 / 5
.055" 18mm, ⌀14x1.25 HR 3
Copper-Platinum
-
3.2 / 5
.055" 18mm, ⌀14x1.25 HR 3
Copper-Platinum
-
3.2 / 5
.055" 18mm, ⌀14x1.25 HR 2
Copper-Platinum
-
3.2 / 5
.055" 18mm, ⌀14x1.25 HR 2
Copper-Platinum
-
3.2 / 5
.055" 18mm, ⌀14x1.25 HR 1
Copper
2.9 / 5
.055" 18mm, ⌀14x1.25 HR 1
Copper
2.9 / 5
.055" 18mm, ⌀14x1.25 HR 2
Copper
2.9 / 5
.055" 18mm, ⌀14x1.25 HR 2
Copper
2.9 / 5
.055" 18mm, ⌀14x1.25 HR 2
Copper
2.9 / 5
.055" 18mm, ⌀14x1.25 HR 1
