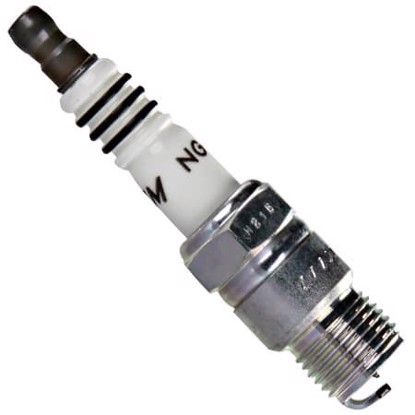

NGK YR5IX 7516 Spark Plug

View on

Verify with Amazon ConfirmedFit before buying

Rating

3.8 / 5 Overall
NGK	YR5IX
Brand	Code
4.0 / 5 Materials
Copper	Iridium
Ground electrode	Center electrode
3.5 / 5 Design
Standard	Fine Wire
Ground type	Center type

Specifications

1mm (.039")	5
Gap	Heat range
⌀14mm	1.25mm
Thread diameter	Thread pitch
11.6mm (.460")	16mm (5/8")
Reach	Hex size
Tapered	Solid
Seat	Terminal
1	Non-Projected
Ground count	Projection

Cross-reference and alternatives

Cross-reference (4)

Alternative spark plugs found in cross-reference docs provided by manufacturers

APP145

Platinum

3.5/ 5

.039"11mm, ⌀14x1.25HR 4

HR9APX

Copper-Platinum

3.3/ 5

.043"11mm, ⌀14x1.25HR 9

T16R-U15

Copper

3.3/ 5

.059"11.6mm, ⌀14x1.25HR 16

AP145DP2

Copper-Platinum

3.2/ 5

.039"11mm, ⌀14x1.25HR 4

Deep reference (8)

A second level of cross-reference: if A=B and B=C, then A=C

YR5GP

Copper-Platinum

3.5/ 5

.039"11.6mm, ⌀14x1.25HR 5

YR5GP

Copper-Platinum

3.5/ 5

.039"11.6mm, ⌀14x1.25HR 5

T16R-U15

Copper

3.3/ 5

.059"11.6mm, ⌀14x1.25HR 16

HR9APX

Copper-Platinum

3.3/ 5

.043"11mm, ⌀14x1.25HR 9

AP145

Copper-Platinum

3.2/ 5

.039"11mm, ⌀14x1.25HR 4

RV12C6

Copper

2.9/ 5

.059"11mm, ⌀14x1.25HR 12

685

Copper

2.9/ 5

.059"11mm, ⌀14x1.25HR 4

HR9ACY

Copper

2.7/ 5

.059"11mm, ⌀14x1.25HR 9

Same specs (2)

Products that have identical characteristics that impact interchangability

YR5GP

Copper-Platinum

3.5/ 5

.039"11.6mm, ⌀14x1.25HR 5

YR5

Copper

3.1/ 5

.039"11.6mm, ⌀14x1.25HR 5
