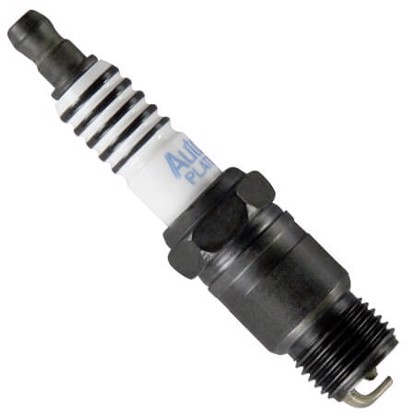

Autolite AP145 Spark Plug

View on

Verify with Amazon ConfirmedFit before buying

Rating

3.2 / 5 Overall
Autolite	AP145
Brand	Code
3.5 / 5 Materials
Copper	Platinum
Ground electrode	Center electrode
2.5 / 5 Design
Standard	Necked Down
Ground type	Center type

Specifications

1mm (.039")	4
Gap	Heat range
⌀14mm	1.25mm
Thread diameter	Thread pitch
11mm (7/16")	16mm (5/8")
Reach	Hex size
Tapered	Solid
Seat	Terminal
1	Non-Projected
Ground count	Projection

Cross-reference and alternatives

Cross-reference (3)

Alternative spark plugs found in cross-reference docs provided by manufacturers

YR5GP

Copper-Platinum

3.5/ 5

.039"11.6mm, ⌀14x1.25HR 5

HR9APX+

Copper-Platinum

3.3/ 5

.043"12.7mm, ⌀14x1.25HR 9

HR9APX

Copper-Platinum

3.3/ 5

.043"11mm, ⌀14x1.25HR 9

Deep reference (7)

A second level of cross-reference: if A=B and B=C, then A=C

YR5IX

Copper-Iridium

3.8/ 5

.039"11.6mm, ⌀14x1.25HR 5

APP145

Platinum

3.5/ 5

.039"11mm, ⌀14x1.25HR 4

YR5GP

Copper-Platinum

3.5/ 5

.039"11.6mm, ⌀14x1.25HR 5

YR5GP

Copper-Platinum

3.5/ 5

.039"11.6mm, ⌀14x1.25HR 5

HR9APX+

Copper-Platinum

3.3/ 5

.043"12.7mm, ⌀14x1.25HR 9

HR9APX

Copper-Platinum

3.3/ 5

.043"11mm, ⌀14x1.25HR 9

T16R-U15

Copper

3.3/ 5

.059"11.6mm, ⌀14x1.25HR 16

Same specs (4)

Products that have identical characteristics that impact interchangability

APP145

Platinum

3.5/ 5

.039"11mm, ⌀14x1.25HR 4

AP145DP2

Copper-Platinum

-

3.2/ 5

.039"11mm, ⌀14x1.25HR 4

145

Copper

2.9/ 5

.039"11mm, ⌀14x1.25HR 4

145BP

Copper

2.9/ 5

.039"11mm, ⌀14x1.25HR 4
