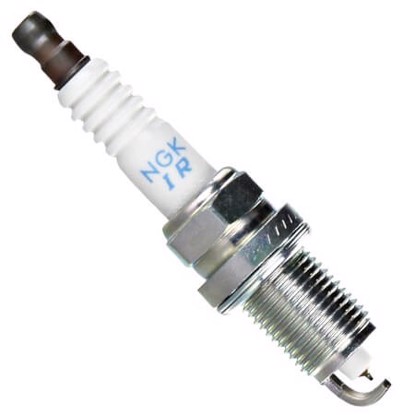

NGK IZFR5L11 97932 Spark Plug

View on

Verify with Amazon ConfirmedFit before buying

Rating

4.2 / 5 Overall
NGK	IZFR5L11
Brand	Code
4.5 / 5 Materials
Platinum	Iridium
Ground electrode	Center electrode
3.5 / 5 Design
Standard	Fine Wire
Ground type	Center type

Specifications

1.1mm (.043")	5
Gap	Heat range
⌀14mm	1.25mm
Thread diameter	Thread pitch
19mm (3/4")	16mm (5/8")
Reach	Hex size
Gasket	Solid
Seat	Terminal
1	Non-Projected
Ground count	Projection

Cross-reference and alternatives

Cross-reference (2)

Alternative spark plugs found in cross-reference docs provided by manufacturers

SKJ16CR-L11

Iridium-Platinum

-

4.2/ 5

.043"19mm, ⌀14x1.25HR 16

VK16

Iridium-Platinum

-

4.2/ 5

.043"19mm, ⌀14x1.25HR 16

Deep reference (47)

A second level of cross-reference: if A=B and B=C, then A=C

XP5224

Iridium-Platinum

-

4.2/ 5

.045"19mm, ⌀14x1.25HR 3

IFR5D10

Iridium-Platinum

-

4.2/ 5

.039"19mm, ⌀14x1.25HR 5

IFR5J11

Iridium-Platinum

-

4.2/ 5

.043"19mm, ⌀14x1.25HR 5

FR5EI

Iridium-Platinum

-

4.2/ 5

.031"19mm, ⌀14x1.25HR 5

IFR5G11

Iridium-Platinum

-

4.2/ 5

.043"19mm, ⌀14x1.25HR 5

IZFR5K11

Iridium-Platinum

-

4.2/ 5

.043"19mm, ⌀14x1.25HR 5

PZFR5F-11

Platinum

3.8/ 5

.043"19mm, ⌀14x1.25HR 5

BKR4EIX

Copper-Iridium

3.8/ 5

.031"19mm, ⌀14x1.25HR 4

PFR5J11

Platinum

3.8/ 5

.043"19mm, ⌀14x1.25HR 5

PZFR5F

Platinum

3.8/ 5

.031"19mm, ⌀14x1.25HR 5

ZFR5AP

Platinum

3.8/ 5

.031"19mm, ⌀14x1.25HR 5

KC10PYPB4

Platinum

3.8/ 5

.039"19mm, ⌀14x1.25HR 10

RC10PYPB4

Platinum

3.8/ 5

.039"19mm, ⌀14x1.25HR 10

RC11PYPB4

Platinum

3.8/ 5

.039"19mm, ⌀14x1.25HR 11

RC10PYP4

Platinum

3.7/ 5

.039"19mm, ⌀14x1.25HR 10

FGR8LQP0

Copper-Platinum

3.5/ 5

.063"19mm, ⌀14x1.25HR 8

FGR8DQP

Copper-Platinum

3.5/ 5

.063"19mm, ⌀14x1.25HR 8

FGR8LQP0

Copper-Platinum

3.5/ 5

.063"19mm, ⌀14x1.25HR 8

ZFR5FGP

Copper-Platinum

3.5/ 5

.039"19mm, ⌀14x1.25HR 5

RC10PYC

Copper-Platinum

3.5/ 5

.045"19mm, ⌀14x1.25HR 10

FR8DPX

Copper-Platinum

3.3/ 5

.043"19mm, ⌀14x1.25HR 8

242229598

Copper-Silver

3.3/ 5

.028"19mm, ⌀14x1.25HR 8

FR8LPX

Copper-Platinum

3.3/ 5

.043"19mm, ⌀14x1.25HR 8

RC12PEC5

Copper-Platinum

3.3/ 5

.049"19mm, ⌀14x1.25HR 12

242225596

Copper

3.2/ 5

.039"19mm, ⌀14x1.25HR 9

BKR5E

Copper

3.1/ 5

.035"19mm, ⌀14x1.25HR 5

BKR5EY

Copper

3.1/ 5

.035"19mm, ⌀14x1.25HR 5

BKR5EYA

Copper

3.1/ 5

.031"19mm, ⌀14x1.25HR 5

FR4

Copper

3.1/ 5

.039"19mm, ⌀14x1.25HR 4

FR45

Copper

3.1/ 5

.059"19mm, ⌀14x1.25HR 4

ZFR5F

Copper

3.1/ 5

.031"19mm, ⌀14x1.25HR 5

241229713

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 8

FR10DCX

Copper

2.9/ 5

.043"19mm, ⌀14x1.25HR 10

FR8DCY

Copper

2.9/ 5

.059"19mm, ⌀14x1.25HR 8

FR8LCX

Copper

2.9/ 5

.043"19mm, ⌀14x1.25HR 8

BKR5ES-11

Copper

2.9/ 5

.043"19mm, ⌀14x1.25HR 5

BKR5ESA-11

Copper

2.9/ 5

.043"19mm, ⌀14x1.25HR 5

3926

Copper

2.9/ 5

.035"19mm, ⌀14x1.25HR 5

5184

Copper

2.9/ 5

.059"19mm, ⌀14x1.25HR 3

RC10MCC

Copper

2.9/ 5

.033"19mm, ⌀14x1.25HR 10

RC10YC

Copper

2.9/ 5

.030"19mm, ⌀14x1.25HR 10

RC10YC4

Copper

2.9/ 5

.039"19mm, ⌀14x1.25HR 10

RC10YCC4

Copper

2.9/ 5

.039"19mm, ⌀14x1.25HR 10

RC12ECC

Copper

2.9/ 5

.035"19mm, ⌀14x1.25HR 12

RC12MCC4

Copper

2.9/ 5

.039"19mm, ⌀14x1.25HR 12

RC12YC5

Copper

2.9/ 5

.049"19mm, ⌀14x1.25HR 12

XC92YC

Copper

2.9/ 5

.030"19mm, ⌀14x1.25HR 92

Same specs (11)

Products that have identical characteristics that impact interchangability

IZFR5K11

Iridium-Platinum

-

4.2/ 5

.043"19mm, ⌀14x1.25HR 5

PQ16R

Platinum

3.8/ 5

.043"19mm, ⌀14x1.25HR 16

PKJ16CR-L11

Platinum

3.8/ 5

.043"19mm, ⌀14x1.25HR 16

ZFR5FIX-11

Copper-Iridium

3.8/ 5

.043"19mm, ⌀14x1.25HR 5

PZFR5F-11

Platinum

3.8/ 5

.043"19mm, ⌀14x1.25HR 5

ZFR5E-11

Copper

3.1/ 5

.043"19mm, ⌀14x1.25HR 5

ZFR5A-11

Copper

3.1/ 5

.043"19mm, ⌀14x1.25HR 5

ZFR5J-11

Copper

3.1/ 5

.043"19mm, ⌀14x1.25HR 5

KJ16CR11

Copper

2.9/ 5

.043"19mm, ⌀14x1.25HR 16

ZFR5D-11

Copper

2.9/ 5

.043"19mm, ⌀14x1.25HR 5

KJ16CR-L11

Copper

2.8/ 5

.043"19mm, ⌀14x1.25HR 16

One step colder (18)

Colder spark plugs with same characteristics for moderately tuned engines (75–100 hp increase)

IZFR6K-11

Iridium-Platinum

-

4.2/ 5

.043"19mm, ⌀14x1.25HR 6

IZFR6K-11S

Iridium-Platinum

-

4.2/ 5

.043"19mm, ⌀14x1.25HR 6

IZFR6H-11

Iridium-Platinum

-

4.2/ 5

.043"19mm, ⌀14x1.25HR 6

IZFR6F-11

Iridium-Platinum

-

4.2/ 5

.043"19mm, ⌀14x1.25HR 6

ZFR6FIX-11

Copper-Iridium

3.8/ 5

.043"19mm, ⌀14x1.25HR 6

PZFR6E-11

Platinum

3.8/ 5

.043"19mm, ⌀14x1.25HR 6

PZFR6F-11

Platinum

3.8/ 5

.043"19mm, ⌀14x1.25HR 6

PQ20R-P11

Platinum

3.8/ 5

.043"19mm, ⌀14x1.25HR 20

PKJ20CR-L11

Platinum

3.8/ 5

.043"19mm, ⌀14x1.25HR 20

PQ20R

Platinum

3.8/ 5

.043"19mm, ⌀14x1.25HR 20

ZFR6A-11

Copper

3.1/ 5

.043"19mm, ⌀14x1.25HR 6

ZFR6F-11

Copper

3.1/ 5

.043"19mm, ⌀14x1.25HR 6

ZFR6J-11

Copper

3.1/ 5

.043"19mm, ⌀14x1.25HR 6

ZFR6F-11 BLYB

Copper

3.1/ 5

.043"19mm, ⌀14x1.25HR 6

ZFR6F-11G

Copper

3.1/ 5

.043"19mm, ⌀14x1.25HR 6

KJ20CR11

Copper

2.9/ 5

.043"19mm, ⌀14x1.25HR 20

QJ20CR11

Copper

2.9/ 5

.043"19mm, ⌀14x1.25HR 20

KJ20CR-L11

Copper

2.8/ 5

.043"19mm, ⌀14x1.25HR 20

Two steps colder (2)

Two steps colder spark plugs with same characteristics for heavily modified engines (150-200 hp increase)

ZFR7F-11

Copper

3.1/ 5

.043"19mm, ⌀14x1.25HR 7

KJ22CR-L11

Copper

2.8/ 5

.043"19mm, ⌀14x1.25HR 22
