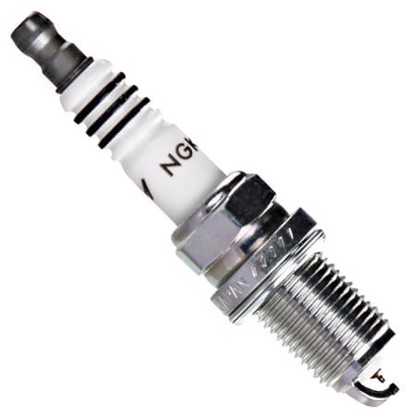

NGK BKR4EIX 5693 Spark Plug

View on

Verify with Amazon ConfirmedFit before buying

Rating

3.8 / 5 Overall
NGK	BKR4EIX
Brand	Code
4.0 / 5 Materials
Copper	Iridium
Ground electrode	Center electrode
3.5 / 5 Design
Standard	Fine Wire
Ground type	Center type

Specifications

0.8mm (.031")	4
Gap	Heat range
⌀14mm	1.25mm
Thread diameter	Thread pitch
19mm (3/4")	16mm (5/8")
Reach	Hex size
Gasket	Solid
Seat	Terminal
1	Non-Projected
Ground count	Projection

Cross-reference and alternatives

Cross-reference (2)

Alternative spark plugs found in cross-reference docs provided by manufacturers

VK16

Iridium-Platinum

4.2/ 5

.043"19mm, ⌀14x1.25HR 16

APP3926

Platinum

3.5/ 5

.035"19mm, ⌀14x1.25HR 5

Deep reference (47)

A second level of cross-reference: if A=B and B=C, then A=C

IFR5D10

Iridium-Platinum

4.2/ 5

.039"19mm, ⌀14x1.25HR 5

IFR5J11

Iridium-Platinum

4.2/ 5

.043"19mm, ⌀14x1.25HR 5

FR5EI

Iridium-Platinum

4.2/ 5

.031"19mm, ⌀14x1.25HR 5

IFR5G11

Iridium-Platinum

4.2/ 5

.043"19mm, ⌀14x1.25HR 5

IZFR5K11

Iridium-Platinum

4.2/ 5

.043"19mm, ⌀14x1.25HR 5

IZFR5L11

Iridium-Platinum

4.2/ 5

.043"19mm, ⌀14x1.25HR 5

PFR5J11

Platinum

-

3.8/ 5

.043"19mm, ⌀14x1.25HR 5

PZFR5F

Platinum

-

3.8/ 5

.031"19mm, ⌀14x1.25HR 5

ZFR5AP

Platinum

-

3.8/ 5

.031"19mm, ⌀14x1.25HR 5

KC10PYPB4

Platinum

-

3.8/ 5

.039"19mm, ⌀14x1.25HR 10

RC10PYPB4

Platinum

-

3.8/ 5

.039"19mm, ⌀14x1.25HR 10

RC11PYPB4

Platinum

-

3.8/ 5

.039"19mm, ⌀14x1.25HR 11

PFR5G-11

Platinum

-

3.8/ 5

.043"19mm, ⌀14x1.25HR 5

RC10PYP4

Platinum

3.7/ 5

.039"19mm, ⌀14x1.25HR 10

FGR8DQP

Copper-Platinum

3.5/ 5

.063"19mm, ⌀14x1.25HR 8

FGR8LQP0

Copper-Platinum

3.5/ 5

.063"19mm, ⌀14x1.25HR 8

ZFR5FGP

Copper-Platinum

3.5/ 5

.039"19mm, ⌀14x1.25HR 5

RC10PYC

Copper-Platinum

3.5/ 5

.045"19mm, ⌀14x1.25HR 10

FR4GP

Copper-Platinum

3.5/ 5

.039"19mm, ⌀14x1.25HR 4

FR8DPX

Copper-Platinum

3.3/ 5

.043"19mm, ⌀14x1.25HR 8

242229598

Copper-Silver

3.3/ 5

.028"19mm, ⌀14x1.25HR 8

FR8LPX

Copper-Platinum

3.3/ 5

.043"19mm, ⌀14x1.25HR 8

RC12PEC5

Copper-Platinum

3.3/ 5

.049"19mm, ⌀14x1.25HR 12

FR8KTC

Copper

3.3/ 5

.039"19mm, ⌀14x1.25HR 8

242225596

Copper

3.2/ 5

.039"19mm, ⌀14x1.25HR 9

BKR5E

Copper

3.1/ 5

.035"19mm, ⌀14x1.25HR 5

BKR5EY

Copper

3.1/ 5

.035"19mm, ⌀14x1.25HR 5

BKR5EYA

Copper

3.1/ 5

.031"19mm, ⌀14x1.25HR 5

FR4

Copper

3.1/ 5

.039"19mm, ⌀14x1.25HR 4

FR45

Copper

3.1/ 5

.059"19mm, ⌀14x1.25HR 4

ZFR5F

Copper

3.1/ 5

.031"19mm, ⌀14x1.25HR 5

241229713

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 8

FR10DCX

Copper

2.9/ 5

.043"19mm, ⌀14x1.25HR 10

FR8DCY

Copper

2.9/ 5

.059"19mm, ⌀14x1.25HR 8

FR8LCX

Copper

2.9/ 5

.043"19mm, ⌀14x1.25HR 8

BKR5ES-11

Copper

2.9/ 5

.043"19mm, ⌀14x1.25HR 5

BKR5ESA-11

Copper

2.9/ 5

.043"19mm, ⌀14x1.25HR 5

3926

Copper

2.9/ 5

.035"19mm, ⌀14x1.25HR 5

5184

Copper

2.9/ 5

.059"19mm, ⌀14x1.25HR 3

RC10MCC

Copper

2.9/ 5

.033"19mm, ⌀14x1.25HR 10

RC10YC

Copper

2.9/ 5

.030"19mm, ⌀14x1.25HR 10

RC10YC4

Copper

2.9/ 5

.039"19mm, ⌀14x1.25HR 10

RC10YCC4

Copper

2.9/ 5

.039"19mm, ⌀14x1.25HR 10

RC12ECC

Copper

2.9/ 5

.035"19mm, ⌀14x1.25HR 12

RC12MCC4

Copper

2.9/ 5

.039"19mm, ⌀14x1.25HR 12

RC12YC5

Copper

2.9/ 5

.049"19mm, ⌀14x1.25HR 12

XC92YC

Copper

2.9/ 5

.030"19mm, ⌀14x1.25HR 92

Bigger gap (5)

0.1..0.3 mm gap increase for better performance given your ignition system can handle it

FR4GP

Copper-Platinum

3.5/ 5

.039"19mm, ⌀14x1.25HR 4

BKR4E

Copper

3.1/ 5

.035"19mm, ⌀14x1.25HR 4

FR4

Copper

3.1/ 5

.039"19mm, ⌀14x1.25HR 4

BKR4E-11

Copper

3.1/ 5

.043"19mm, ⌀14x1.25HR 4

BKR4ESA-11

Copper

2.9/ 5

.043"19mm, ⌀14x1.25HR 4

One step colder (10)

Colder spark plugs with same characteristics for moderately tuned engines (75–100 hp increase)

SK16R-P8

Iridium-Platinum

4.2/ 5

.031"19mm, ⌀14x1.25HR 16

SKJ16CR-A8

Iridium-Platinum

4.2/ 5

.031"19mm, ⌀14x1.25HR 16

K16PSRB8

Iridium-Platinum

4.2/ 5

.031"19mm, ⌀14x1.25HR 16

SK16PR-F8

Iridium-Platinum

4.2/ 5

.031"19mm, ⌀14x1.25HR 16

FR5EI

Iridium-Platinum

4.2/ 5

.031"19mm, ⌀14x1.25HR 5

IFR5T-8N

Iridium-Platinum

4.2/ 5

.031"19mm, ⌀14x1.25HR 5

PK16R8

Platinum

-

3.8/ 5

.031"19mm, ⌀14x1.25HR 16

BCPR5EP-8

Platinum

-

3.8/ 5

.031"19mm, ⌀14x1.25HR 5

BCPR5EIX

Copper-Iridium

-

3.8/ 5

.031"19mm, ⌀14x1.25HR 5

BKR5EYA

Copper

3.1/ 5

.031"19mm, ⌀14x1.25HR 5

Two steps colder (20)

Two steps colder spark plugs with same characteristics for heavily modified engines (150-200 hp increase)

IFR6B

Iridium-Platinum

4.2/ 5

.031"19mm, ⌀14x1.25HR 6

SKJ20CR-A8

Iridium-Platinum

4.2/ 5

.031"19mm, ⌀14x1.25HR 20

SVK20RZ8

Iridium-Platinum

4.2/ 5

.031"19mm, ⌀14x1.25HR 20

SK20R8

Iridium-Platinum

4.2/ 5

.031"19mm, ⌀14x1.25HR 20

SK20PR-A8

Iridium-Platinum

4.2/ 5

.031"19mm, ⌀14x1.25HR 20

K20PSR-B8

Iridium-Platinum

4.2/ 5

.031"19mm, ⌀14x1.25HR 20

VK20T

Iridium-Platinum

4.2/ 5

.031"19mm, ⌀14x1.25HR 20

IFR6F8DN

Iridium-Platinum

4.2/ 5

.031"19mm, ⌀14x1.25HR 6

FR6EI

Iridium-Platinum

4.2/ 5

.031"19mm, ⌀14x1.25HR 6

IFR6B-K

Iridium-Platinum

4.2/ 5

.031"19mm, ⌀14x1.25HR 6

BKR6EIX

Copper-Iridium

-

3.8/ 5

.031"19mm, ⌀14x1.25HR 6

PK20R8

Platinum

-

3.8/ 5

.031"19mm, ⌀14x1.25HR 20

BCPR6EIX

Copper-Iridium

-

3.8/ 5

.031"19mm, ⌀14x1.25HR 6

BCPR6EP-N-8

Platinum

-

3.8/ 5

.031"19mm, ⌀14x1.25HR 6

PFR6G

Platinum

-

3.8/ 5

.031"19mm, ⌀14x1.25HR 6

PK20GR8

Platinum

-

3.8/ 5

.031"19mm, ⌀14x1.25HR 20

PK20PR-P8

Platinum

-

3.8/ 5

.031"19mm, ⌀14x1.25HR 20

BKR6EP-8

Copper-Platinum

3.5/ 5

.031"19mm, ⌀14x1.25HR 6

BKR6EYA

Copper

3.1/ 5

.031"19mm, ⌀14x1.25HR 6

BKR6E

Copper

3.1/ 5

.031"19mm, ⌀14x1.25HR 6
