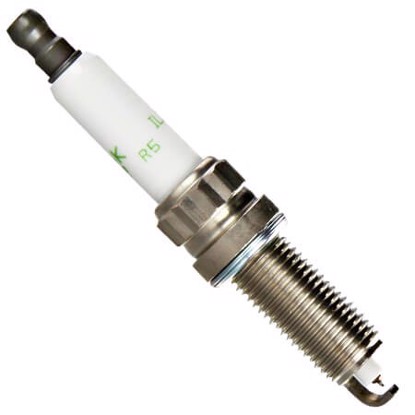

NGK ILZKBR7B8DG 95770 Spark Plug

View on

Verify with Amazon ConfirmedFit before buying

Rating

4.2 / 5 Overall
NGK	ILZKBR7B8DG
Brand	Code
4.5 / 5 Materials
Platinum	Iridium
Ground electrode	Center electrode
3.5 / 5 Design
Standard	Fine Wire
Ground type	Center type

Specifications

0.8mm (.031")	7
Gap	Heat range
⌀12mm	1.25mm
Thread diameter	Thread pitch
26.5mm (1.04")	14mm ()
Reach	Hex size
Gasket	Solid
Seat	Terminal
1	Non-Projected
Ground count	Projection

Cross-reference and alternatives

Cross-reference (1)

Alternative spark plugs found in cross-reference docs provided by manufacturers

ZXU22HCR8

Iridium-Platinum

-

4.2/ 5

.031"26.5mm, ⌀12x1.25HR 22

Bigger gap (5)

0.1..0.3 mm gap increase for better performance given your ignition system can handle it

ILZKAR7B11

Iridium-Platinum

-

4.2/ 5

.043"26.5mm, ⌀12x1.25HR 7

ILZKAR7E11S

Iridium-Platinum

-

4.2/ 5

.043"26.5mm, ⌀12x1.25HR 7

LKAR7BGP

Copper-Platinum

3.5/ 5

.039"26.5mm, ⌀12x1.25HR 7

LKAR7AGP-D

Copper-Platinum

3.5/ 5

.039"26.5mm, ⌀12x1.25HR 7

LZKAR7A

Copper

2.9/ 5

.035"26.5mm, ⌀12x1.25HR 7

One step colder (1)

Colder spark plugs with same characteristics for moderately tuned engines (75–100 hp increase)

ILZKAR8H8S

Iridium-Platinum

-

4.2/ 5

.031"26.5mm, ⌀12x1.25HR 8
