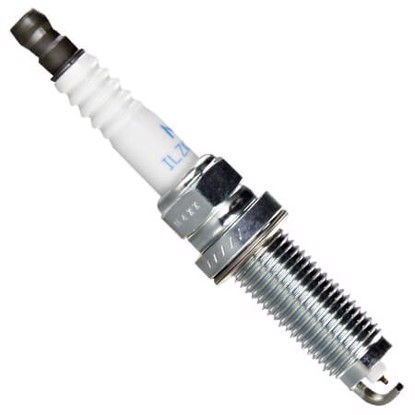

NGK ILZKAR7E11S 96509 Spark Plug

View on

Verify with Amazon ConfirmedFit before buying

Rating

4.2 / 5 Overall
NGK	ILZKAR7E11S
Brand	Code
4.5 / 5 Materials
Platinum	Iridium
Ground electrode	Center electrode
3.5 / 5 Design
Standard	Fine Wire
Ground type	Center type

Specifications

1.1mm (.043")	7
Gap	Heat range
⌀12mm	1.25mm
Thread diameter	Thread pitch
26.5mm (1.04")	14mm (9/16")
Reach	Hex size
Gasket	Solid
Seat	Terminal
1	Non-Projected
Ground count	Projection

Cross-reference and alternatives

Cross-reference (1)

Alternative spark plugs found in cross-reference docs provided by manufacturers

IXEH22TT

Iridium-Platinum

4.7/ 5

.039"26.5mm, ⌀12x1.25HR 22

Deep reference (6)

A second level of cross-reference: if A=B and B=C, then A=C

DILKAR7B11

Iridium-Platinum

4.7/ 5

.043"26.5mm, ⌀12x1.25HR 7

DILKAR7G11GS

Iridium-Platinum

4.7/ 5

.043"26.5mm, ⌀12x1.25HR 7

DILZKAR7B11

Iridium-Platinum

4.7/ 5

.043"26.5mm, ⌀12x1.25HR 7

DILZKAR7C11S

Iridium-Platinum

4.7/ 5

.043"26.5mm, ⌀12x1.25HR 7

SILZKAR7B11

Iridium-Platinum

4.3/ 5

.043"26.5mm, ⌀12x1.25HR 7

ILZKAR7A10

Iridium-Platinum

-

4.2/ 5

.039"26.5mm, ⌀12x1.25HR 7

Same specs (1)

Products that have identical characteristics that impact interchangability

ILZKAR7B11

Iridium-Platinum

-

4.2/ 5

.043"26.5mm, ⌀12x1.25HR 7
