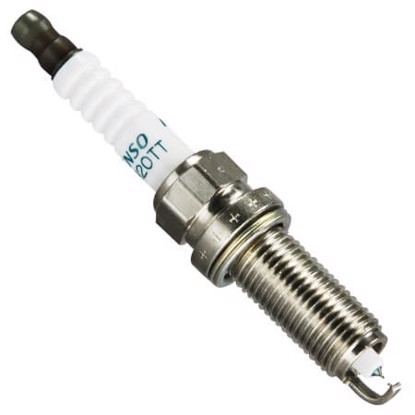

Denso IXEH22TT 4712 Spark Plug

View on

Verify with Amazon ConfirmedFit before buying

Rating

4.7 / 5 Overall
Denso	IXEH22TT
Brand	Code
4.5 / 5 Materials
Platinum	Iridium
Ground electrode	Center electrode
5.0 / 5 Design
Fine Wire	Fine Wire
Ground type	Center type

Specifications

1mm (.039")	22
Gap	Heat range
⌀12mm	1.25mm
Thread diameter	Thread pitch
26.5mm (1.04")	14mm (9/16")
Reach	Hex size
Gasket	Solid
Seat	Terminal
1	Non-Projected
Ground count	Projection

Cross-reference and alternatives

Cross-reference (7)

Alternative spark plugs found in cross-reference docs provided by manufacturers

DILKAR7B11

Iridium-Platinum

-

4.7/ 5

.043"26.5mm, ⌀12x1.25HR 7

DILKAR7G11GS

Iridium-Platinum

-

4.7/ 5

.043"26.5mm, ⌀12x1.25HR 7

DILZKAR7B11

Iridium-Platinum

-

4.7/ 5

.043"26.5mm, ⌀12x1.25HR 7

DILZKAR7C11S

Iridium-Platinum

-

4.7/ 5

.043"26.5mm, ⌀12x1.25HR 7

SILZKAR7B11

Iridium-Platinum

4.3/ 5

.043"26.5mm, ⌀12x1.25HR 7

ILZKAR7A10

Iridium-Platinum

4.2/ 5

.039"26.5mm, ⌀12x1.25HR 7

ILZKAR7E11S

Iridium-Platinum

4.2/ 5

.043"26.5mm, ⌀12x1.25HR 7

Deep reference (4)

A second level of cross-reference: if A=B and B=C, then A=C

FXE22HR-11

Iridium-Platinum

-

4.7/ 5

.043"26.5mm, ⌀12x1.25HR 22

DXE22HQR-D11S

Iridium-Platinum

-

4.7/ 5

.043"26.5mm, ⌀12x1.25HR 22

XP5682

Iridium-Platinum

4.2/ 5

.039"26.5mm, ⌀12x1.25HR 4

APP5683

Platinum

3.5/ 5

.045"26.5mm, ⌀12x1.25HR 5

Bigger gap (3)

0.1..0.3 mm gap increase for better performance given your ignition system can handle it

DILKAR7H11GS

Iridium-Platinum

-

4.7/ 5

.043"26.5mm, ⌀12x1.25HR 7

DILZKAR7B11

Iridium-Platinum

-

4.7/ 5

.043"26.5mm, ⌀12x1.25HR 7

DILZKAR7C11S

Iridium-Platinum

-

4.7/ 5

.043"26.5mm, ⌀12x1.25HR 7
