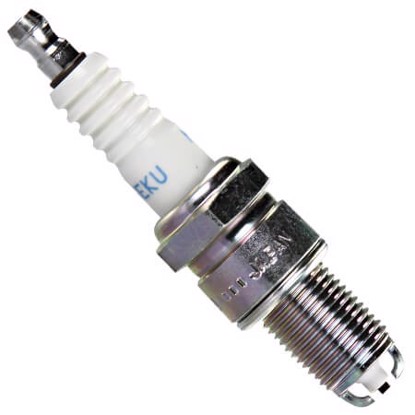

NGK BPR5EKU 5685 Spark Plug

View on

Verify with Amazon ConfirmedFit before buying

Rating

3.1 / 5 Overall
NGK	BPR5EKU
Brand	Code
3.0 / 5 Materials
Copper	Copper
Ground electrode	Center electrode
3.3 / 5 Design
Semi-Surface Discharge	Standard
Ground type	Center type

Specifications

0.7mm (.028")	5
Gap	Heat range
⌀14mm	1.25mm
Thread diameter	Thread pitch
19mm (3/4")	21mm (13/16")
Reach	Hex size
Gasket	Solid
Seat	Terminal
2	Non-Projected
Ground count	Projection

Cross-reference and alternatives

Cross-reference (2)

Alternative spark plugs found in cross-reference docs provided by manufacturers

VW16

Iridium-Platinum

4.2/ 5

.043"19mm, ⌀14x1.25HR 16

W16ETR-S

Copper

3.3/ 5

.039"19mm, ⌀14x1.25HR 16

Deep reference (36)

A second level of cross-reference: if A=B and B=C, then A=C

BPR5EIX

Copper-Iridium

3.8/ 5

.031"19mm, ⌀14x1.25HR 5

GR5IX

Copper-Iridium

3.8/ 5

.039"19mm, ⌀14x1.25HR 5

BPR5EIX-11

Copper-Iridium

3.8/ 5

.043"19mm, ⌀14x1.25HR 5

RN14PMP5

Platinum

3.6/ 5

.049"19mm, ⌀14x1.25HR 14

WGR8DQP

Copper-Platinum

3.5/ 5

.063"19mm, ⌀14x1.25HR 8

BPR5EGP

Copper-Platinum

3.5/ 5

.039"19mm, ⌀14x1.25HR 5

WR8DPX

Copper-Platinum

3.3/ 5

.043"19mm, ⌀14x1.25HR 8

WR9DPX

Copper-Platinum

3.3/ 5

.043"19mm, ⌀14x1.25HR 9

242225538

Copper-Silver

3.3/ 5

.024"19mm, ⌀14x1.25HR 9

242225539

Copper-Silver

3.3/ 5

.028"19mm, ⌀14x1.25HR 9

RN14PMC3

Copper-Platinum

3.3/ 5

.030"19mm, ⌀14x1.25HR 14

BP5EY

Copper

-

3.1/ 5

.035"19mm, ⌀14x1.25HR 5

BPR4EY

Copper

-

3.1/ 5

.035"19mm, ⌀14x1.25HR 4

BPR5EY

Copper

-

3.1/ 5

.031"19mm, ⌀14x1.25HR 5

GR45

Copper

-

3.1/ 5

.059"19mm, ⌀14x1.25HR 4

GR5

Copper

-

3.1/ 5

.039"19mm, ⌀14x1.25HR 5

ZGR5A

Copper

-

3.1/ 5

.035"19mm, ⌀14x1.25HR 5

ZGR5C

Copper

-

3.1/ 5

.035"19mm, ⌀14x1.25HR 5

WR10LCV

Copper

2.9/ 5

.050"19mm, ⌀14x1.25HR 10

WR9DCX

Copper

2.9/ 5

.043"19mm, ⌀14x1.25HR 9

WR9LCX

Copper

2.9/ 5

.043"19mm, ⌀14x1.25HR 9

BP4ES

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 4

BP5EA-L

Copper

2.9/ 5

.035"19mm, ⌀14x1.25HR 5

BP5ES

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 5

BPR4ES

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 4

BPR5ES

Copper

2.9/ 5

.035"19mm, ⌀14x1.25HR 5

4265

Copper

2.9/ 5

.035"19mm, ⌀14x1.25HR 10

646

Copper

2.9/ 5

.050"19mm, ⌀14x1.25HR 12

66

Copper

2.9/ 5

.035"19mm, ⌀14x1.25HR 12

N11YC

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 11

N12YC

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 12

RN12MC4

Copper

2.9/ 5

.039"19mm, ⌀14x1.25HR 12

RN14MC5

Copper

2.9/ 5

.049"19mm, ⌀14x1.25HR 14

RN16YC5

Copper

2.9/ 5

.049"19mm, ⌀14x1.25HR 16

404

Copper

2.9/ 5

.035"19mm, ⌀14x1.25HR 9

WR9DCY

Copper

2.7/ 5

.059"19mm, ⌀14x1.25HR 9
