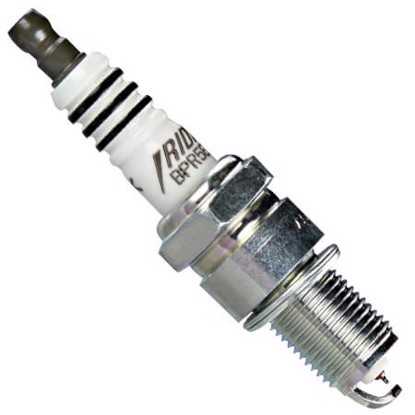

NGK BPR5EIX Spark Plug

View on

Verify with Amazon ConfirmedFit before buying

Rating

3.8 / 5 Overall
NGK	BPR5EIX
Brand	Code
4.0 / 5 Materials
Copper	Iridium
Ground electrode	Center electrode
3.5 / 5 Design
Standard	Fine Wire
Ground type	Center type

Specifications

0.8mm (.031")	5
Gap	Heat range
⌀14mm	1.25mm
Thread diameter	Thread pitch
19mm (3/4")	21mm (13/16")
Reach	Hex size
Gasket	Removable Nut
Seat	Terminal
1	Non-Projected
Ground count	Projection

Cross-reference and alternatives

Cross-reference (6)

Alternative spark plugs found in cross-reference docs provided by manufacturers

XS65

Iridium-Platinum

4.2/ 5

.035"19mm, ⌀14x1.25HR 10

XS65DP

Iridium-Platinum

4.2/ 5

.035"19mm, ⌀14x1.25HR 10

VW16

Iridium-Platinum

4.2/ 5

.043"19mm, ⌀14x1.25HR 16

W16EXZU

Copper-Platinum

3.9/ 5

.028"19mm, ⌀14x1.25HR 16

242225538

Copper-Silver

3.3/ 5

.024"19mm, ⌀14x1.25HR 9

AP66

Copper-Platinum

3.2/ 5

.035"19mm, ⌀14x1.25HR 12

Deep reference (53)

A second level of cross-reference: if A=B and B=C, then A=C

XS65

Iridium-Platinum

4.2/ 5

.035"19mm, ⌀14x1.25HR 10

VW16

Iridium-Platinum

4.2/ 5

.043"19mm, ⌀14x1.25HR 16

W16EXZU

Copper-Platinum

3.9/ 5

.028"19mm, ⌀14x1.25HR 16

GR4IX OSN

Copper-Iridium

-

3.8/ 5

.039"19mm, ⌀14x1.25HR 4

GR5IX

Copper-Iridium

-

3.8/ 5

.039"19mm, ⌀14x1.25HR 5

RN14PMP5

Platinum

3.6/ 5

.049"19mm, ⌀14x1.25HR 14

WGR8DQP

Copper-Platinum

3.5/ 5

.063"19mm, ⌀14x1.25HR 8

BPR5EGP

Copper-Platinum

3.5/ 5

.039"19mm, ⌀14x1.25HR 5

APP66

Platinum

3.5/ 5

.035"19mm, ⌀14x1.25HR 12

BPR5EGP

Copper-Platinum

3.5/ 5

.039"19mm, ⌀14x1.25HR 5

W14EPR-U

Copper

3.3/ 5

.031"19mm, ⌀14x1.25HR 14

W16EPR-U

Copper

3.3/ 5

.031"19mm, ⌀14x1.25HR 16

W16EPR-U10

Copper

3.3/ 5

.039"19mm, ⌀14x1.25HR 16

WR8DPX

Copper-Platinum

3.3/ 5

.043"19mm, ⌀14x1.25HR 8

WR9DPX

Copper-Platinum

3.3/ 5

.043"19mm, ⌀14x1.25HR 9

242225538

Copper-Silver

3.3/ 5

.024"19mm, ⌀14x1.25HR 9

242225539

Copper-Silver

3.3/ 5

.028"19mm, ⌀14x1.25HR 9

RN14PMC3

Copper-Platinum

3.3/ 5

.030"19mm, ⌀14x1.25HR 14

W14EPR-U

Copper

3.3/ 5

.031"19mm, ⌀14x1.25HR 14

WR9DPX

Copper-Platinum

3.3/ 5

.043"19mm, ⌀14x1.25HR 9

5322

Copper

3.2/ 5

.030"19mm, ⌀14x1.25HR 11

BP5EY

Copper

3.1/ 5

.035"19mm, ⌀14x1.25HR 5

BPR4EY

Copper

3.1/ 5

.035"19mm, ⌀14x1.25HR 4

BPR5EKU

Copper

3.1/ 5

.028"19mm, ⌀14x1.25HR 5

BPR5EY

Copper

3.1/ 5

.031"19mm, ⌀14x1.25HR 5

GR45

Copper

3.1/ 5

.059"19mm, ⌀14x1.25HR 4

GR5

Copper

3.1/ 5

.039"19mm, ⌀14x1.25HR 5

ZGR5A

Copper

3.1/ 5

.035"19mm, ⌀14x1.25HR 5

ZGR5C

Copper

3.1/ 5

.035"19mm, ⌀14x1.25HR 5

WR8DC+ NS

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 8

WR8DC+

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 8

N12YC

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 12

RN12MC4

Copper

2.9/ 5

.039"19mm, ⌀14x1.25HR 12

BP4ES

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 4

BPR4ES

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 4

WR10LCV

Copper

2.9/ 5

.050"19mm, ⌀14x1.25HR 10

WR9DCX

Copper

2.9/ 5

.043"19mm, ⌀14x1.25HR 9

WR9LCX

Copper

2.9/ 5

.043"19mm, ⌀14x1.25HR 9

BP4ES

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 4

BP5EA-L

Copper

2.9/ 5

.035"19mm, ⌀14x1.25HR 5

BP5ES

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 5

BPR4ES

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 4

BPR5ES

Copper

2.9/ 5

.035"19mm, ⌀14x1.25HR 5

4265

Copper

2.9/ 5

.035"19mm, ⌀14x1.25HR 10

646

Copper

2.9/ 5

.050"19mm, ⌀14x1.25HR 12

66

Copper

2.9/ 5

.035"19mm, ⌀14x1.25HR 12

N11YC

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 11

N12YC

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 12

RN12MC4

Copper

2.9/ 5

.039"19mm, ⌀14x1.25HR 12

RN14MC5

Copper

2.9/ 5

.049"19mm, ⌀14x1.25HR 14

RN16YC5

Copper

2.9/ 5

.049"19mm, ⌀14x1.25HR 16

4265

Copper

2.9/ 5

.035"19mm, ⌀14x1.25HR 10

WR9DCY

Copper

2.7/ 5

.059"19mm, ⌀14x1.25HR 9

Same specs (2)

Products that have identical characteristics that impact interchangability

P16PR8

Platinum

-

3.8/ 5

.031"19mm, ⌀14x1.25HR 16

BPR5EY

Copper

3.1/ 5

.031"19mm, ⌀14x1.25HR 5

Bigger gap (14)

0.1..0.3 mm gap increase for better performance given your ignition system can handle it

VW16

Iridium-Platinum

4.2/ 5

.043"19mm, ⌀14x1.25HR 16

P16PR11

Platinum

-

3.8/ 5

.043"19mm, ⌀14x1.25HR 16

BPR5EIX-11

Copper-Iridium

-

3.8/ 5

.043"19mm, ⌀14x1.25HR 5

PGR5A-11

Platinum

-

3.8/ 5

.043"19mm, ⌀14x1.25HR 5

BPR5EP-11

Platinum

-

3.8/ 5

.043"19mm, ⌀14x1.25HR 5

PGR5C-11

Platinum

-

3.8/ 5

.043"19mm, ⌀14x1.25HR 5

GR5IX

Copper-Iridium

-

3.8/ 5

.039"19mm, ⌀14x1.25HR 5

GR5GP

Copper-Platinum

3.5/ 5

.039"19mm, ⌀14x1.25HR 5

BPR5EGP

Copper-Platinum

3.5/ 5

.039"19mm, ⌀14x1.25HR 5

GR5

Copper

3.1/ 5

.039"19mm, ⌀14x1.25HR 5

BPR5EY-11

Copper

3.1/ 5

.043"19mm, ⌀14x1.25HR 5

BPR5ES SOLID

Copper

2.9/ 5

.035"19mm, ⌀14x1.25HR 5

BPR5ES

Copper

2.9/ 5

.035"19mm, ⌀14x1.25HR 5

BPR5ES-11

Copper

2.9/ 5

.043"19mm, ⌀14x1.25HR 5

One step colder (4)

Colder spark plugs with same characteristics for moderately tuned engines (75–100 hp increase)

VW20T

Iridium-Platinum

4.2/ 5

.031"19mm, ⌀14x1.25HR 20

P20R8

Platinum

-

3.8/ 5

.031"19mm, ⌀14x1.25HR 20

P20PR8

Platinum

-

3.8/ 5

.031"19mm, ⌀14x1.25HR 20

BPR6EY

Copper

3.1/ 5

.031"19mm, ⌀14x1.25HR 6

Two steps colder (5)

Two steps colder spark plugs with same characteristics for heavily modified engines (150-200 hp increase)

VW22

Iridium-Platinum

4.2/ 5

.031"19mm, ⌀14x1.25HR 22

P22PR8

Platinum

-

3.8/ 5

.031"19mm, ⌀14x1.25HR 22

BPR7EIX

Copper-Iridium

-

3.8/ 5

.031"19mm, ⌀14x1.25HR 7

BPR7ES SOLID

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 7

BPR7ES

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 7
