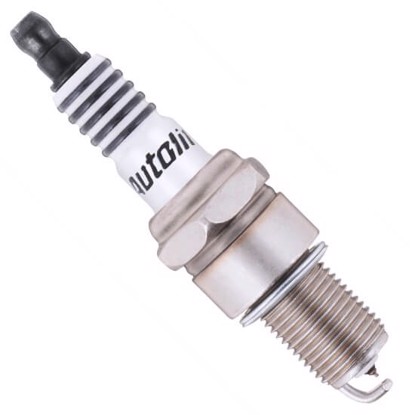

Autolite XS62 Spark Plug

View on

Verify with Amazon ConfirmedFit before buying

Rating

4.2 / 5 Overall
Autolite	XS62
Brand	Code
4.5 / 5 Materials
Platinum	Iridium-Platinum
Ground electrode	Center electrode
3.5 / 5 Design
Standard	Fine Wire
Ground type	Center type

Specifications

0.9mm (.035")	7
Gap	Heat range
⌀14mm	1.25mm
Thread diameter	Thread pitch
19mm (3/4")	21mm (13/16")
Reach	Hex size
Gasket	Removable Nut
Seat	Terminal
1	Non-Projected
Ground count	Projection

Cross-reference and alternatives

Cross-reference (13)

Alternative spark plugs found in cross-reference docs provided by manufacturers

IW22

Copper-Iridium

4.3/ 5

.031"19mm, ⌀14x1.25HR 22

W3DP0

Copper-Platinum

3.9/ 5

.024"19mm, ⌀14x1.25HR 3

W22EPR-ZU11

Copper-Platinum

3.9/ 5

.043"19mm, ⌀14x1.25HR 22

BPR7EIX

Copper-Iridium

3.8/ 5

.031"19mm, ⌀14x1.25HR 7

W22EPR-U

Copper

3.3/ 5

.031"19mm, ⌀14x1.25HR 22

W22EPR-U11

Copper

3.3/ 5

.043"19mm, ⌀14x1.25HR 22

W22EP-U

Copper

3.3/ 5

.031"19mm, ⌀14x1.25HR 22

WR5DC+

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 5

W5DC

Copper

2.9/ 5

.028"19mm, ⌀14x1.25HR 5

N7YC

Copper

2.9/ 5

.026"19mm, ⌀14x1.25HR 7

BP7ES

Copper

2.9/ 5

.035"19mm, ⌀14x1.25HR 7

BP7ES-11

Copper

2.9/ 5

.043"19mm, ⌀14x1.25HR 7

RN7YC

Copper

2.8/ 5

.026"19mm, ⌀14x1.25HR 7

Deep reference (65)

A second level of cross-reference: if A=B and B=C, then A=C

IW01-24

Iridium-Platinum

4.5/ 5

.024"19mm, ⌀14x1.25HR 24

IW24

Copper-Iridium

4.3/ 5

.028"19mm, ⌀14x1.25HR 24

IW22

Copper-Iridium

4.3/ 5

.031"19mm, ⌀14x1.25HR 22

IW22

Copper-Iridium

4.3/ 5

.031"19mm, ⌀14x1.25HR 22

IW22

Copper-Iridium

4.3/ 5

.031"19mm, ⌀14x1.25HR 22

IW22

Copper-Iridium

4.3/ 5

.031"19mm, ⌀14x1.25HR 22

IW22

Copper-Iridium

4.3/ 5

.031"19mm, ⌀14x1.25HR 22

IGR7A-G

Iridium-Platinum

-

4.2/ 5

.028"19mm, ⌀14x1.25HR 7

XS62DP

Iridium-Platinum

-

4.2/ 5

.035"19mm, ⌀14x1.25HR 7

VW22

Iridium-Platinum

-

4.2/ 5

.031"19mm, ⌀14x1.25HR 22

VW22

Iridium-Platinum

-

4.2/ 5

.031"19mm, ⌀14x1.25HR 22

VW22

Iridium-Platinum

-

4.2/ 5

.031"19mm, ⌀14x1.25HR 22

VW22

Iridium-Platinum

-

4.2/ 5

.031"19mm, ⌀14x1.25HR 22

VW22

Iridium-Platinum

-

4.2/ 5

.031"19mm, ⌀14x1.25HR 22

BPR7EIX

Copper-Iridium

3.8/ 5

.031"19mm, ⌀14x1.25HR 7

PGR7A

Platinum

3.8/ 5

.028"19mm, ⌀14x1.25HR 7

BKR7EIX-11

Copper-Iridium

3.8/ 5

.043"19mm, ⌀14x1.25HR 7

R4118S-7

Copper-Gold-Palladium

3.4/ 5

.026"19mm, ⌀14x1.25HR 7

AR51

Copper

3.3/ 5

.024"19mm, ⌀14x1.25HR 3

AR52

Copper

3.3/ 5

.024"19mm, ⌀14x1.25HR 4

AR52

Copper

3.3/ 5

.024"19mm, ⌀14x1.25HR 4

W22EP-U

Copper

3.3/ 5

.031"19mm, ⌀14x1.25HR 22

AR52

Copper

3.3/ 5

.024"19mm, ⌀14x1.25HR 4

W22EP-U

Copper

3.3/ 5

.031"19mm, ⌀14x1.25HR 22

AR52

Copper

3.3/ 5

.024"19mm, ⌀14x1.25HR 4

W22EP-U

Copper

3.3/ 5

.031"19mm, ⌀14x1.25HR 22

W22EX-U

Copper

3.3/ 5

.031"19mm, ⌀14x1.25HR 22

AR52

Copper

3.3/ 5

.024"19mm, ⌀14x1.25HR 4

AR52

Copper

3.3/ 5

.024"19mm, ⌀14x1.25HR 4

W22EPR-U

Copper

3.3/ 5

.031"19mm, ⌀14x1.25HR 22

R6021E-7

Copper

3.2/ 5

.026"19mm, ⌀14x1.25HR 7

AP62

Copper-Platinum

3.2/ 5

.035"19mm, ⌀14x1.25HR 7

AP62

Copper-Platinum

3.2/ 5

.035"19mm, ⌀14x1.25HR 7

W5DC

Copper

2.9/ 5

.028"19mm, ⌀14x1.25HR 5

BP7ES

Copper

2.9/ 5

.035"19mm, ⌀14x1.25HR 7

BPR7ES

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 7

53

Copper

2.9/ 5

.024"19mm, ⌀14x1.25HR 5

N7YC

Copper

2.9/ 5

.026"19mm, ⌀14x1.25HR 7

BP8ES

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 8

BPR7ES

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 7

62

Copper

2.9/ 5

.035"19mm, ⌀14x1.25HR 7

62

Copper

2.9/ 5

.035"19mm, ⌀14x1.25HR 7

BPR7ES-11

Copper

2.9/ 5

.043"19mm, ⌀14x1.25HR 7

W5DC

Copper

2.9/ 5

.028"19mm, ⌀14x1.25HR 5

BP7ES

Copper

2.9/ 5

.035"19mm, ⌀14x1.25HR 7

53

Copper

2.9/ 5

.024"19mm, ⌀14x1.25HR 5

N7YC

Copper

2.9/ 5

.026"19mm, ⌀14x1.25HR 7

62

Copper

2.9/ 5

.035"19mm, ⌀14x1.25HR 7

BPR7ES

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 7

62

Copper

2.9/ 5

.035"19mm, ⌀14x1.25HR 7

BP7ES

Copper

2.9/ 5

.035"19mm, ⌀14x1.25HR 7

BPR7ES

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 7

62

Copper

2.9/ 5

.035"19mm, ⌀14x1.25HR 7

BP6ES

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 6

BP7ES

Copper

2.9/ 5

.035"19mm, ⌀14x1.25HR 7

W5DC

Copper

2.9/ 5

.028"19mm, ⌀14x1.25HR 5

813C

Copper

2.9/ 5

.026"19mm, ⌀14x1.25HR 7

N6YC

Copper

2.9/ 5

.026"19mm, ⌀14x1.25HR 6

N7YC

Copper

2.9/ 5

.026"19mm, ⌀14x1.25HR 7

62

Copper

2.9/ 5

.035"19mm, ⌀14x1.25HR 7

62

Copper

2.9/ 5

.035"19mm, ⌀14x1.25HR 7

62

Copper

2.9/ 5

.035"19mm, ⌀14x1.25HR 7

BPR6ES

Copper

2.9/ 5

.035"19mm, ⌀14x1.25HR 6

RN7YC

Copper

2.8/ 5

.026"19mm, ⌀14x1.25HR 7

RN7YC

Copper

2.8/ 5

.026"19mm, ⌀14x1.25HR 7

Same specs (3)

Products that have identical characteristics that impact interchangability

XS62DP

Iridium-Platinum

-

4.2/ 5

.035"19mm, ⌀14x1.25HR 7

AP62

Copper-Platinum

3.2/ 5

.035"19mm, ⌀14x1.25HR 7

62

Copper

2.9/ 5

.035"19mm, ⌀14x1.25HR 7
