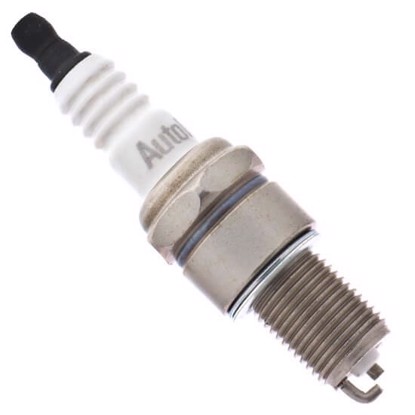

Autolite AR52 Spark Plug

View on

Verify with Amazon ConfirmedFit before buying

Rating

3.3 / 5 Overall
Autolite	AR52
Brand	Code
3.0 / 5 Materials
Copper	Copper
Ground electrode	Center electrode
3.8 / 5 Design
Cut Back	Standard
Ground type	Center type

Specifications

0.6mm (.024")	4
Gap	Heat range
⌀14mm	1.25mm
Thread diameter	Thread pitch
19mm (3/4")	21mm (13/16")
Reach	Hex size
Gasket	Solid
Seat	Terminal
1	Non-Projected
Ground count	Projection

Cross-reference and alternatives

Cross-reference (9)

Alternative spark plugs found in cross-reference docs provided by manufacturers

W22EPB

Copper

-

3.3/ 5

.035"19mm, ⌀14x1.25HR 22

W22EP-U

Copper

-

3.3/ 5

.031"19mm, ⌀14x1.25HR 22

R5672A-8

Copper

3.1/ 5

.031"19mm, ⌀14x1.25HR 8

W5DC

Copper

2.9/ 5

.028"19mm, ⌀14x1.25HR 5

WR5DC+

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 5

N7YC

Copper

2.9/ 5

.026"19mm, ⌀14x1.25HR 7

BP7ES

Copper

2.9/ 5

.035"19mm, ⌀14x1.25HR 7

BP7ES-11

Copper

2.9/ 5

.043"19mm, ⌀14x1.25HR 7

BPR7ES

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 7

Deep reference (49)

A second level of cross-reference: if A=B and B=C, then A=C

IK24

Copper-Iridium

4.3/ 5

.031"19mm, ⌀14x1.25HR 24

IW22

Copper-Iridium

4.3/ 5

.031"19mm, ⌀14x1.25HR 22

IW22

Copper-Iridium

4.3/ 5

.031"19mm, ⌀14x1.25HR 22

IW22

Copper-Iridium

4.3/ 5

.031"19mm, ⌀14x1.25HR 22

IW22

Copper-Iridium

4.3/ 5

.031"19mm, ⌀14x1.25HR 22

XS62

Iridium-Platinum

4.2/ 5

.035"19mm, ⌀14x1.25HR 7

VW22

Iridium-Platinum

4.2/ 5

.031"19mm, ⌀14x1.25HR 22

XS62

Iridium-Platinum

4.2/ 5

.035"19mm, ⌀14x1.25HR 7

XS62

Iridium-Platinum

4.2/ 5

.035"19mm, ⌀14x1.25HR 7

VW22

Iridium-Platinum

4.2/ 5

.031"19mm, ⌀14x1.25HR 22

XS62

Iridium-Platinum

4.2/ 5

.035"19mm, ⌀14x1.25HR 7

VW22

Iridium-Platinum

4.2/ 5

.031"19mm, ⌀14x1.25HR 22

XS62

Iridium-Platinum

4.2/ 5

.035"19mm, ⌀14x1.25HR 7

XS62

Iridium-Platinum

4.2/ 5

.035"19mm, ⌀14x1.25HR 7

VW22

Iridium-Platinum

4.2/ 5

.031"19mm, ⌀14x1.25HR 22

242250512

Copper-Platinum

3.9/ 5

.024"19mm, ⌀14x1.25HR 4

C61Y

Copper

3.5/ 5

.030"19mm, ⌀14x1.25HR 61

BR7ET

Copper

-

3.3/ 5

.041"19mm, ⌀14x1.25HR 7

AR3911

Copper

-

3.3/ 5

.024"19mm, ⌀14x1.25HR 4

C61HCX

Copper

-

3.3/ 5

.035"19mm, ⌀14x1.25HR 61

W24EP-U

Copper

-

3.3/ 5

.031"19mm, ⌀14x1.25HR 24

W22EP-U

Copper

-

3.3/ 5

.031"19mm, ⌀14x1.25HR 22

W22EP-U

Copper

-

3.3/ 5

.031"19mm, ⌀14x1.25HR 22

W22EP-U

Copper

-

3.3/ 5

.031"19mm, ⌀14x1.25HR 22

W22EX-U

Copper

-

3.3/ 5

.031"19mm, ⌀14x1.25HR 22

W22EPR-U

Copper

-

3.3/ 5

.031"19mm, ⌀14x1.25HR 22

W5DC

Copper

2.9/ 5

.028"19mm, ⌀14x1.25HR 5

BP7ES

Copper

2.9/ 5

.035"19mm, ⌀14x1.25HR 7

53

Copper

2.9/ 5

.024"19mm, ⌀14x1.25HR 5

N7YC

Copper

2.9/ 5

.026"19mm, ⌀14x1.25HR 7

C61YC

Copper

2.9/ 5

.026"19mm, ⌀14x1.25HR 61

62

Copper

2.9/ 5

.035"19mm, ⌀14x1.25HR 7

BP7ES

Copper

2.9/ 5

.035"19mm, ⌀14x1.25HR 7

BPR7ES

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 7

62

Copper

2.9/ 5

.035"19mm, ⌀14x1.25HR 7

BPR7ES

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 7

62

Copper

2.9/ 5

.035"19mm, ⌀14x1.25HR 7

BP6ES

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 6

BP7ES

Copper

2.9/ 5

.035"19mm, ⌀14x1.25HR 7

W5DC

Copper

2.9/ 5

.028"19mm, ⌀14x1.25HR 5

813C

Copper

2.9/ 5

.026"19mm, ⌀14x1.25HR 7

N6YC

Copper

2.9/ 5

.026"19mm, ⌀14x1.25HR 6

N7YC

Copper

2.9/ 5

.026"19mm, ⌀14x1.25HR 7

62

Copper

2.9/ 5

.035"19mm, ⌀14x1.25HR 7

62

Copper

2.9/ 5

.035"19mm, ⌀14x1.25HR 7

62

Copper

2.9/ 5

.035"19mm, ⌀14x1.25HR 7

WR5DC+

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 5

RN6YC

Copper

2.9/ 5

.026"19mm, ⌀14x1.25HR 6

W5DC

Copper

2.9/ 5

.028"19mm, ⌀14x1.25HR 5

Same specs (3)

Products that have identical characteristics that impact interchangability

AR50

Copper

-

3.3/ 5

.024"19mm, ⌀14x1.25HR 2

AR51

Copper

-

3.3/ 5

.024"19mm, ⌀14x1.25HR 3

AR53

Copper

-

3.3/ 5

.024"19mm, ⌀14x1.25HR 5
