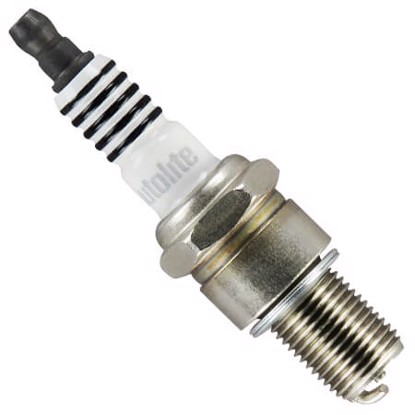

Autolite AR2594 Spark Plug

View on

Verify with Amazon ConfirmedFit before buying

Rating

3.3 / 5 Overall
Autolite	AR2594
Brand	Code
3.0 / 5 Materials
Copper	Copper
Ground electrode	Center electrode
3.8 / 5 Design
Cut Back	Standard
Ground type	Center type

Specifications

0.6mm (.024")	3
Gap	Heat range
⌀14mm	1.25mm
Thread diameter	Thread pitch
19mm (3/4")	21mm (13/16")
Reach	Hex size
Gasket	Solid
Seat	Terminal
1	Non-Projected
Ground count	Projection

Cross-reference and alternatives

Cross-reference (5)

Alternative spark plugs found in cross-reference docs provided by manufacturers

W27ES-U

Copper

-

3.3/ 5

.028"19mm, ⌀14x1.25HR 27

BR7ET

Copper

-

3.3/ 5

.041"19mm, ⌀14x1.25HR 7

R6061-9

Copper

-

3.3/ 5

.031"19mm, ⌀14x1.25HR 9

N2C

Copper

2.9/ 5

.026"19mm, ⌀14x1.25HR 2

B9ES

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 9

Deep reference (26)

A second level of cross-reference: if A=B and B=C, then A=C

IW01-27

Iridium-Platinum

4.5/ 5

.024"19mm, ⌀14x1.25HR 27

IW06-27

Iridium-Platinum

4.5/ 5

.024"19mm, ⌀14x1.25HR 27

IW27

Copper-Iridium

4.3/ 5

.028"19mm, ⌀14x1.25HR 27

IW27

Copper-Iridium

4.3/ 5

.028"19mm, ⌀14x1.25HR 27

XS4063

Iridium-Platinum

4.2/ 5

.031"19mm, ⌀14x1.25HR 3

XS4063

Iridium-Platinum

4.2/ 5

.031"19mm, ⌀14x1.25HR 3

XS4062

Iridium-Platinum

4.2/ 5

.031"19mm, ⌀14x1.25HR 2

AR2592

Copper

-

3.3/ 5

.024"19mm, ⌀14x1.25HR 1

W22EBR

Copper

-

3.3/ 5

.043"20mm, ⌀14x1.25HR 22

W22EPB

Copper

-

3.3/ 5

.035"19mm, ⌀14x1.25HR 22

AR2592

Copper

-

3.3/ 5

.024"19mm, ⌀14x1.25HR 1

AR2593

Copper

-

3.3/ 5

.024"19mm, ⌀14x1.25HR 2

AR51

Copper

-

3.3/ 5

.024"19mm, ⌀14x1.25HR 3

W27ES-U

Copper

-

3.3/ 5

.028"19mm, ⌀14x1.25HR 27

W27ES-U

Copper

-

3.3/ 5

.028"19mm, ⌀14x1.25HR 27

AR2593

Copper

-

3.3/ 5

.024"19mm, ⌀14x1.25HR 2

R5671A-9

Copper

3.1/ 5

.031"19mm, ⌀14x1.25HR 9

B9ES

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 9

BP9ES

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 9

N2C

Copper

2.9/ 5

.026"19mm, ⌀14x1.25HR 2

B9ES

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 9

2594

Copper

2.9/ 5

.024"19mm, ⌀14x1.25HR 3

W3CC OBS

Copper

2.9/ 5

.020"19mm, ⌀14x1.25HR 3

805C

Copper

2.9/ 5

.026"19mm, ⌀14x1.25HR 2

N2C

Copper

2.9/ 5

.026"19mm, ⌀14x1.25HR 2

4062

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 2

Same specs (2)

Products that have identical characteristics that impact interchangability

AR2592

Copper

-

3.3/ 5

.024"19mm, ⌀14x1.25HR 1

AR2593

Copper

-

3.3/ 5

.024"19mm, ⌀14x1.25HR 2
