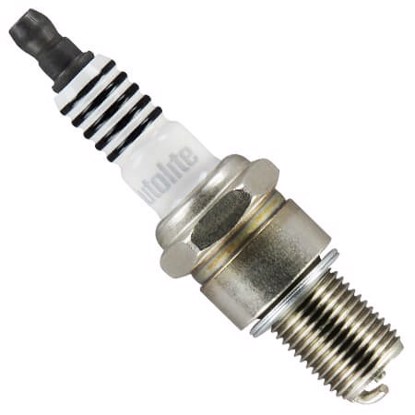

Autolite AR2593 Spark Plug

View on

Verify with Amazon ConfirmedFit before buying

Rating

3.3 / 5 Overall
Autolite	AR2593
Brand	Code
3.0 / 5 Materials
Copper	Copper
Ground electrode	Center electrode
3.8 / 5 Design
Cut Back	Standard
Ground type	Center type

Specifications

0.6mm (.024")	2
Gap	Heat range
⌀14mm	1.25mm
Thread diameter	Thread pitch
19mm (3/4")	21mm (13/16")
Reach	Hex size
Gasket	Solid
Seat	Terminal
1	Non-Projected
Ground count	Projection

Cross-reference and alternatives

Cross-reference (7)

Alternative spark plugs found in cross-reference docs provided by manufacturers

241256515

Copper-Silver

3.5/ 5

.024"19mm, ⌀14x1.25HR 3

C61

Copper

3.5/ 5

.026"19mm, ⌀14x1.25HR 61

R6061-9

Copper

-

3.3/ 5

.031"19mm, ⌀14x1.25HR 9

R5671A-9

Copper

3.1/ 5

.031"19mm, ⌀14x1.25HR 9

W3CC OBS

Copper

2.9/ 5

.020"19mm, ⌀14x1.25HR 3

BR9ES SOLID

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 9

B9ES

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 9

Deep reference (33)

A second level of cross-reference: if A=B and B=C, then A=C

R7434-8

Iridium-Platinum

4.5/ 5

.028"19mm, ⌀14x1.25HR 8

IW01-27

Iridium-Platinum

4.5/ 5

.024"19mm, ⌀14x1.25HR 27

IW06-27

Iridium-Platinum

4.5/ 5

.024"19mm, ⌀14x1.25HR 27

IW24

Copper-Iridium

4.3/ 5

.028"19mm, ⌀14x1.25HR 24

IK27

Copper-Iridium

4.3/ 5

.031"19mm, ⌀14x1.25HR 27

IW24

Copper-Iridium

4.3/ 5

.028"19mm, ⌀14x1.25HR 24

IW27

Copper-Iridium

4.3/ 5

.028"19mm, ⌀14x1.25HR 27

XS4062

Iridium-Platinum

4.2/ 5

.031"19mm, ⌀14x1.25HR 2

XS4062

Iridium-Platinum

4.2/ 5

.031"19mm, ⌀14x1.25HR 2

XS4062

Iridium-Platinum

4.2/ 5

.031"19mm, ⌀14x1.25HR 2

BR9EIX

Copper-Iridium

3.8/ 5

.031"19mm, ⌀14x1.25HR 9

C59

Copper

3.5/ 5

.026"19mm, ⌀14x1.25HR 59

AR3934

Copper

-

3.3/ 5

.024"19mm, ⌀14x1.25HR 4

AR2594

Copper

-

3.3/ 5

.024"19mm, ⌀14x1.25HR 3

AR51

Copper

-

3.3/ 5

.024"19mm, ⌀14x1.25HR 3

C59CX

Copper

-

3.3/ 5

.035"19mm, ⌀14x1.25HR 59

AR3933

Copper

-

3.3/ 5

.024"19mm, ⌀14x1.25HR 3

W27ES-U

Copper

-

3.3/ 5

.028"19mm, ⌀14x1.25HR 27

W24ES-U

Copper

-

3.3/ 5

.031"19mm, ⌀14x1.25HR 24

W27ES-U

Copper

-

3.3/ 5

.028"19mm, ⌀14x1.25HR 27

AR2594

Copper

-

3.3/ 5

.024"19mm, ⌀14x1.25HR 3

R5724-8

Copper

3.1/ 5

.020"18mm, ⌀14x1.25HR 8

R5671A-9

Copper

3.1/ 5

.031"19mm, ⌀14x1.25HR 9

4062

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 2

2594

Copper

2.9/ 5

.024"19mm, ⌀14x1.25HR 3

W3CC OBS

Copper

2.9/ 5

.020"19mm, ⌀14x1.25HR 3

4062

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 2

B9ES

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 9

2594

Copper

2.9/ 5

.024"19mm, ⌀14x1.25HR 3

W3CC OBS

Copper

2.9/ 5

.020"19mm, ⌀14x1.25HR 3

805C

Copper

2.9/ 5

.026"19mm, ⌀14x1.25HR 2

N2C

Copper

2.9/ 5

.026"19mm, ⌀14x1.25HR 2

4062

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 2

Same specs (2)

Products that have identical characteristics that impact interchangability

AR2592

Copper

-

3.3/ 5

.024"19mm, ⌀14x1.25HR 1

AR2594

Copper

-

3.3/ 5

.024"19mm, ⌀14x1.25HR 3
