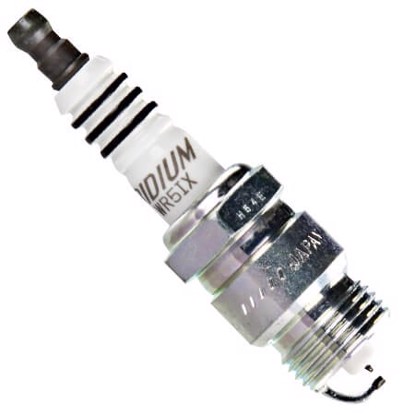

NGK WR5IX 7510 Spark Plug

View on

Verify with Amazon ConfirmedFit before buying

Rating

3.8 / 5 Overall
NGK	WR5IX
Brand	Code
4.0 / 5 Materials
Copper	Iridium
Ground electrode	Center electrode
3.5 / 5 Design
Standard	Fine Wire
Ground type	Center type

Specifications

1mm (.039")	5
Gap	Heat range
⌀18mm	1.5mm
Thread diameter	Thread pitch
11mm (7/16")	21mm (13/16")
Reach	Hex size
Tapered	Solid
Seat	Terminal
1	Non-Projected
Ground count	Projection

Cross-reference and alternatives

Cross-reference (8)

Alternative spark plugs found in cross-reference docs provided by manufacturers

APP45

Platinum

3.5/ 5

.043"11mm, ⌀18x1.5HR 2

APP46

Platinum

3.5/ 5

.043"11mm, ⌀18x1.5HR 3

APP5125

Platinum

3.5/ 5

.045"11.6mm, ⌀18x1.5HR 2

AP124

Copper-Platinum

3.2/ 5

.037"11.6mm, ⌀18x1.5HR 1

AP45

Copper-Platinum

3.2/ 5

.043"11mm, ⌀18x1.5HR 2

AP46

Copper-Platinum

3.2/ 5

.043"11mm, ⌀18x1.5HR 3

AP5125

Copper-Platinum

3.2/ 5

.045"11.6mm, ⌀18x1.5HR 2

DR9BPX

Copper-Platinum

3.0/ 5

.043"11mm, ⌀18x1.5HR 9

Deep reference (5)

A second level of cross-reference: if A=B and B=C, then A=C

MA16PR-U

Copper

3.3/ 5

.035"11.6mm, ⌀18x1.5HR 16

AP45

Copper-Platinum

3.2/ 5

.043"11mm, ⌀18x1.5HR 2

DR9BPX

Copper-Platinum

3.0/ 5

.043"11mm, ⌀18x1.5HR 9

DR8BPX4

Copper-Platinum

3.0/ 5

.043"11mm, ⌀18x1.5HR 8

DR9BPX6

Copper-Platinum

3.0/ 5

.043"11mm, ⌀18x1.5HR 9

Same specs (1)

Products that have identical characteristics that impact interchangability

WR5

Copper

3.1/ 5

.039"11mm, ⌀18x1.5HR 5
