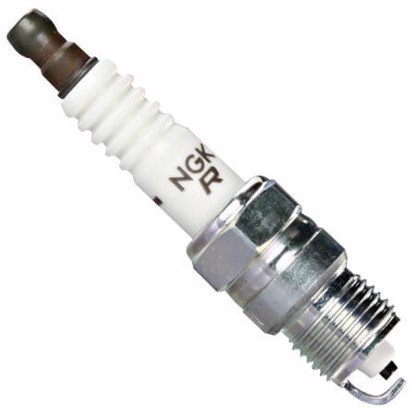

NGK UR55 Spark Plug

View on

Verify with Amazon ConfirmedFit before buying

Rating

3.1 / 5 Overall
NGK	UR55
Brand	Code
3.0 / 5 Materials
Copper	Copper
Ground electrode	Center electrode
3.3 / 5 Design
Standard	V-Cut
Ground type	Center type

Specifications

1.5mm (.059")	5
Gap	Heat range
⌀14mm	1.25mm
Thread diameter	Thread pitch
11.6mm (.460")	16mm (5/8")
Reach	Hex size
Tapered	Solid
Seat	Terminal
1	Non-Projected
Ground count	Projection

Cross-reference and alternatives

Cross-reference (2)

Alternative spark plugs found in cross-reference docs provided by manufacturers

T20PR-U15

Copper

3.3/ 5

.059"11.6mm, ⌀14x1.25HR 20

666

Copper

2.9/ 5

.059"9.5mm, ⌀14x1.25HR 5

Deep reference (13)

A second level of cross-reference: if A=B and B=C, then A=C

T14PR-U15

Copper

3.3/ 5

.059"11.6mm, ⌀14x1.25HR 14

T16PR-U15

Copper

3.3/ 5

.059"11.6mm, ⌀14x1.25HR 16

T16PR-U20

Copper

3.3/ 5

.079"11.6mm, ⌀14x1.25HR 16

UR6

Copper

-

3.1/ 5

.039"11.6mm, ⌀14x1.25HR 6

UR45

Copper

-

3.1/ 5

.059"11.6mm, ⌀14x1.25HR 4

24

Copper

2.9/ 5

.045"11mm, ⌀14x1.25HR 3

BPR6FS

Copper

2.9/ 5

.031"11.6mm, ⌀14x1.25HR 6

HR9BCY+

Copper

2.9/ 5

.039"11mm, ⌀14x1.25HR 9

RV15YC6

Copper

2.9/ 5

.059"11mm, ⌀14x1.25HR 15

RV17YC6

Copper

2.9/ 5

.059"11mm, ⌀14x1.25HR 17

RV19YC6

Copper

2.9/ 5

.059"11mm, ⌀14x1.25HR 19

HR10BCY

Copper

2.7/ 5

.059"11mm, ⌀14x1.25HR 10

HR10BCZ

Copper

2.7/ 5

.079"11mm, ⌀14x1.25HR 10

Same specs (1)

Products that have identical characteristics that impact interchangability

UR55IX

Copper-Iridium

3.8/ 5

.059"11.6mm, ⌀14x1.25HR 5
