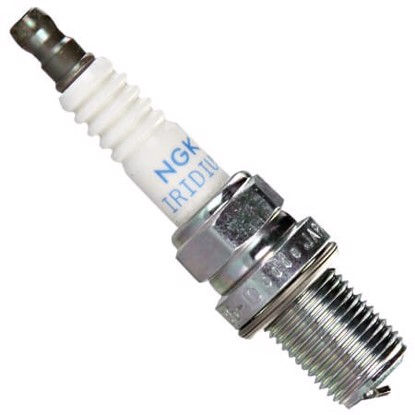

NGK R7436-9 Spark Plug

View on

Verify with Amazon ConfirmedFit before buying

Rating

4.5 / 5 Overall
NGK	R7436-9
Brand	Code
4.5 / 5 Materials
Platinum	Iridium
Ground electrode	Center electrode
4.5 / 5 Design
Slant	Fine Wire
Ground type	Center type

Specifications

0.7mm (.028")	9
Gap	Heat range
⌀14mm	1.25mm
Thread diameter	Thread pitch
19mm (3/4")	16mm (5/8")
Reach	Hex size
Gasket	Solid
Seat	Terminal
1	Non-Projected
Ground count	Projection

Cross-reference and alternatives

Same specs (2)

Products that have identical characteristics that impact interchangability

IK01-27

Iridium-Platinum

-

4.5/ 5

.028"19mm, ⌀14x1.25HR 27

IQ01-27

Iridium-Platinum

-

4.5/ 5

.028"19mm, ⌀14x1.25HR 27

One step colder (4)

Colder spark plugs with same characteristics for moderately tuned engines (75–100 hp increase)

IK01-31

Iridium-Platinum

-

4.5/ 5

.028"19mm, ⌀14x1.25HR 31

IQ01-31

Iridium-Platinum

-

4.5/ 5

.028"19mm, ⌀14x1.25HR 31

R7436-10

Iridium-Platinum

-

4.5/ 5

.028"19mm, ⌀14x1.25HR 10

R7434-10

Iridium-Platinum

-

4.5/ 5

.028"19mm, ⌀14x1.25HR 10

Two steps colder (2)

Two steps colder spark plugs with same characteristics for heavily modified engines (150-200 hp increase)

IK01-34

Iridium-Platinum

-

4.5/ 5

.028"19mm, ⌀14x1.25HR 34

IQ01-34

Iridium-Platinum

-

4.5/ 5

.028"19mm, ⌀14x1.25HR 34
