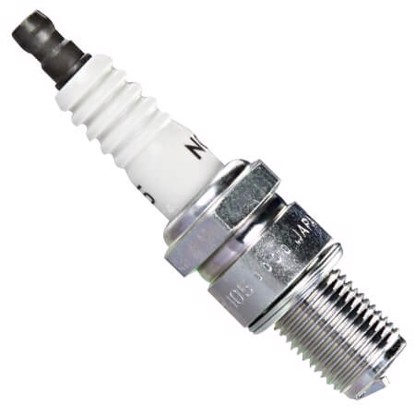

NGK R6254E-9 Spark Plug

View on

Verify with Amazon ConfirmedFit before buying

Rating

3.3 / 5 Overall
NGK	R6254E-9
Brand	Code
3.0 / 5 Materials
Copper	Copper
Ground electrode	Center electrode
3.8 / 5 Design
Slant	Standard
Ground type	Center type

Specifications

0.6mm (.024")	9
Gap	Heat range
⌀14mm	1.25mm
Thread diameter	Thread pitch
19mm (3/4")	21mm (13/16")
Reach	Hex size
Gasket	Solid
Seat	Terminal
1	Non-Projected
Ground count	Projection

Cross-reference and alternatives

Cross-reference (2)

Alternative spark plugs found in cross-reference docs provided by manufacturers

IW01-27

Iridium-Platinum

4.5/ 5

.024"19mm, ⌀14x1.25HR 27

IW06-27

Iridium-Platinum

4.5/ 5

.024"19mm, ⌀14x1.25HR 27

Deep reference (7)

A second level of cross-reference: if A=B and B=C, then A=C

R7376-9

Iridium-Platinum

4.5/ 5

.024"19mm, ⌀14x1.25HR 9

R7376-9

Iridium-Platinum

4.5/ 5

.024"19mm, ⌀14x1.25HR 9

R6850-9

Platinum

4.2/ 5

.035"19mm, ⌀14x1.25HR 9

R6850-9

Platinum

4.2/ 5

.035"19mm, ⌀14x1.25HR 9

BR9ECSIX

Copper-Iridium

4.0/ 5

.031"19mm, ⌀14x1.25HR 9

R6061-9

Copper

-

3.3/ 5

.031"19mm, ⌀14x1.25HR 9

R6061-9

Copper

-

3.3/ 5

.031"19mm, ⌀14x1.25HR 9

Bigger gap (1)

0.1..0.3 mm gap increase for better performance given your ignition system can handle it

R6061-9

Copper

-

3.3/ 5

.031"19mm, ⌀14x1.25HR 9
