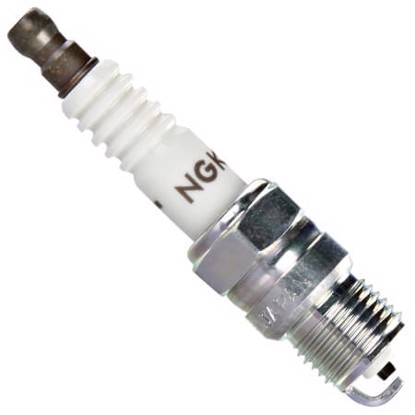

NGK R5674-7 Spark Plug

View on

Verify with Amazon ConfirmedFit before buying

Rating

3.1 / 5 Overall
NGK	R5674-7
Brand	Code
3.0 / 5 Materials
Copper	Copper
Ground electrode	Center electrode
3.3 / 5 Design
Standard	V-Cut
Ground type	Center type

Specifications

0.8mm (.031")	7
Gap	Heat range
⌀14mm	1.25mm
Thread diameter	Thread pitch
11mm (7/16")	16mm (5/8")
Reach	Hex size
Tapered	Solid
Seat	Terminal
1	Non-Projected
Ground count	Projection

Cross-reference and alternatives

Cross-reference (3)

Alternative spark plugs found in cross-reference docs provided by manufacturers

ITF22

Copper-Iridium

4.3/ 5

.031"11.6mm, ⌀14x1.25HR 22

AR12

Copper

3.3/ 5

.024"11.6mm, ⌀14x1.25HR 4

AR13

Copper

3.3/ 5

.024"11.6mm, ⌀14x1.25HR 5

Deep reference (8)

A second level of cross-reference: if A=B and B=C, then A=C

ITF24

Copper-Iridium

4.3/ 5

.031"11.6mm, ⌀14x1.25HR 24

UR6IX

Copper-Iridium

3.8/ 5

.039"11.6mm, ⌀14x1.25HR 6

UR6GP

Copper-Platinum

3.5/ 5

.039"11.6mm, ⌀14x1.25HR 6

V63Y

Copper

3.5/ 5

.026"11mm, ⌀14x1.25HR 63

AP23

Copper-Platinum

3.2/ 5

.045"11mm, ⌀14x1.25HR 1

R5673-7

Copper

-

3.1/ 5

.028"11.6mm, ⌀14x1.25HR 7

UR6

Copper

-

3.1/ 5

.039"11.6mm, ⌀14x1.25HR 6

R5674-6

Copper

-

3.1/ 5

.031"11mm, ⌀14x1.25HR 6
