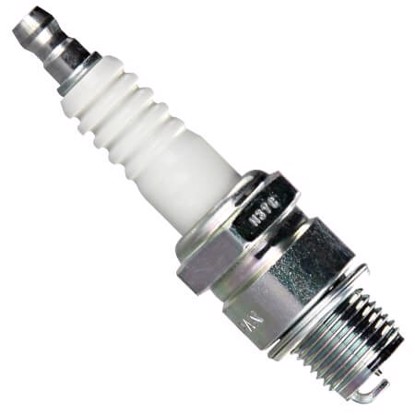

NGK R5525-7 Spark Plug

Verify with Amazon ConfirmedFit before buying

Rating
Brand	Code
3.2 / 5 Overall
NGK	R5525-7
3.0 / 5 Materials
Copper	Copper
Ground electrode	Center electrode
3.5 / 5 Design
Standard	Fine Wire
Ground type	Center type

Specifications
Gap	Heat range
0.65mm (.026")	7
⌀14mm	1.25mm
Thread diameter	Thread pitch
12.7mm (1/2")	21mm (13/16")
Reach	Hex size
Gasket	Removable Nut
Seat	Terminal
1	Non-Projected
Ground count	Projection

Cross-reference and alternatives

How we find alternative spark plugs How we rate spark plugs

Cross-reference (1)

Alternative spark plugs found in cross-reference docs provided by manufacturers

IWF22

Copper-Iridium

4.3/ 5

.031"12.7mm, ⌀14x1.25HR 22

Deep reference (24)

A second level of cross-reference: if A=B and B=C, then A=C

XS4093

Iridium-Platinum

4.2/ 5

.031"12.7mm, ⌀14x1.25HR 4

BPR7HIX

Copper-Iridium

3.8/ 5

.031"12.7mm, ⌀14x1.25HR 7

BR6HIX

Copper-Iridium

3.8/ 5

.031"12.7mm, ⌀14x1.25HR 6

BR7HIX

Copper-Iridium

3.8/ 5

.031"12.7mm, ⌀14x1.25HR 7

W7AC

Copper

2.9/ 5

.024"12.7mm, ⌀14x1.25HR 7

B7HS

Copper

2.9/ 5

.028"12.7mm, ⌀14x1.25HR 7

BP7HS

Copper

2.9/ 5

.028"12.7mm, ⌀14x1.25HR 7

BPR7HS

Copper

2.9/ 5

.028"12.7mm, ⌀14x1.25HR 7

BPR7HS-10

Copper

2.9/ 5

.039"12.7mm, ⌀14x1.25HR 7

BR6HS

Copper

2.9/ 5

.028"12.7mm, ⌀14x1.25HR 6

BR7HS

Copper

2.9/ 5

.028"12.7mm, ⌀14x1.25HR 7

BZ7HS-10

Copper

2.9/ 5

.039"12.7mm, ⌀14x1.25HR 7

4093

Copper

2.9/ 5

.031"12.7mm, ⌀14x1.25HR 4

414

Copper

2.9/ 5

.024"12.7mm, ⌀14x1.25HR 5

L82C

Copper

2.9/ 5

.031"12.7mm, ⌀14x1.25HR 82

L82YC

Copper

2.9/ 5

.031"12.7mm, ⌀14x1.25HR 82

QL82C

Copper

2.9/ 5

.039"12.7mm, ⌀14x1.25HR 82

QL82YC

Copper

2.9/ 5

.035"12.7mm, ⌀14x1.25HR 82

QL86C

Copper

2.9/ 5

.030"12.7mm, ⌀14x1.25HR 86

RL82C

Copper

2.9/ 5

.030"12.7mm, ⌀14x1.25HR 82

RL82YC

Copper

2.9/ 5

.035"12.7mm, ⌀14x1.25HR 82

RL86C

Copper

2.9/ 5

.024"12.7mm, ⌀14x1.25HR 86

275

Copper

2.9/ 5

.024"12.7mm, ⌀14x1.25HR 6

4123

Copper

2.9/ 5

.028"12.7mm, ⌀14x1.25HR 4

One step colder (1)

Colder spark plugs with same characteristics for moderately tuned engines (75–100 hp increase)

R5525-8

Copper

3.2/ 5

.026"12.7mm, ⌀14x1.25HR 8

Two steps colder (1)

Two steps colder spark plugs with same characteristics for heavily modified engines (150-200 hp increase)

R5525-9

Copper

3.2/ 5

.026"12.7mm, ⌀14x1.25HR 9
