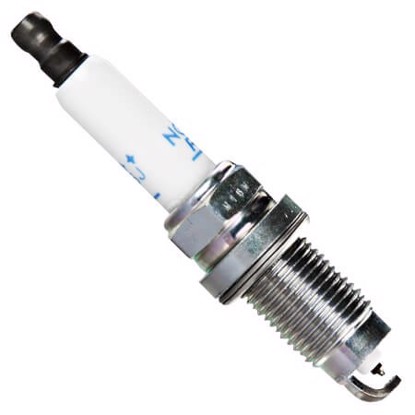

NGK PZFR5J-11 7743 Spark Plug

View on

Verify with Amazon ConfirmedFit before buying

Rating

3.8 / 5 Overall
NGK	PZFR5J-11
Brand	Code
4.0 / 5 Materials
Platinum	Platinum
Ground electrode	Center electrode
3.5 / 5 Design
Standard	Fine Wire
Ground type	Center type

Specifications

1.1mm (.043")	5
Gap	Heat range
⌀14mm	1.25mm
Thread diameter	Thread pitch
19mm (3/4")	16mm (5/8")
Reach	Hex size
Gasket	Solid
Seat	Terminal
1	Non-Projected
Ground count	Projection

Cross-reference and alternatives

Cross-reference (1)

Alternative spark plugs found in cross-reference docs provided by manufacturers

XP5224

Iridium-Platinum

4.2/ 5

.045"19mm, ⌀14x1.25HR 3

Deep reference (23)

A second level of cross-reference: if A=B and B=C, then A=C

SKJ20DR-M11

Iridium-Platinum

4.3/ 5

.043"19mm, ⌀14x1.25HR 20

SK22PR-M11S

Iridium-Platinum

4.3/ 5

.043"19mm, ⌀14x1.25HR 22

SKJ16DR-M11

Iridium-Platinum

4.3/ 5

.043"19mm, ⌀14x1.25HR 16

SKJ20DR-M11S

Iridium-Platinum

4.3/ 5

.043"19mm, ⌀14x1.25HR 20

SKJ20DR-M13

Iridium-Platinum

4.3/ 5

.050"19mm, ⌀14x1.25HR 20

RC12WMPB4

Iridium-Platinum

4.2/ 5

.039"19mm, ⌀14x1.25HR 12

RC12WLPB4

Iridium-Platinum

4.2/ 5

.039"19mm, ⌀14x1.25HR 12

SKJ16CR-L11

Iridium-Platinum

4.2/ 5

.043"19mm, ⌀14x1.25HR 16

IZFR5K11

Iridium-Platinum

4.2/ 5

.043"19mm, ⌀14x1.25HR 5

IZFR6F-11

Iridium-Platinum

4.2/ 5

.043"19mm, ⌀14x1.25HR 6

IZFR6N-E

Iridium-Platinum

4.2/ 5

.031"19mm, ⌀14x1.25HR 6

IFR7L-11

Iridium-Platinum

4.2/ 5

.043"19mm, ⌀14x1.25HR 7

IZFR5G

Iridium-Platinum

4.2/ 5

.031"19mm, ⌀14x1.25HR 5

IZFR5J

Iridium-Platinum

4.2/ 5

.031"19mm, ⌀14x1.25HR 5

IZFR6K-11

Iridium-Platinum

4.2/ 5

.043"19mm, ⌀14x1.25HR 6

IFR7G-11KS

Iridium-Platinum

4.2/ 5

.043"19mm, ⌀14x1.25HR 7

IZFR6H-11

Iridium-Platinum

4.2/ 5

.043"19mm, ⌀14x1.25HR 6

IZFR6K-11S

Iridium-Platinum

4.2/ 5

.043"19mm, ⌀14x1.25HR 6

IZFR6K-13

Iridium-Platinum

4.2/ 5

.050"19mm, ⌀14x1.25HR 6

242235776

Platinum

-

3.8/ 5

.039"19mm, ⌀14x1.25HR 7

ZFR5FIX-11

Copper-Iridium

-

3.8/ 5

.043"19mm, ⌀14x1.25HR 5

PZFR5Q-11

Platinum

-

3.8/ 5

.043"19mm, ⌀14x1.25HR 5

ZFR6FIX-11

Copper-Iridium

-

3.8/ 5

.043"19mm, ⌀14x1.25HR 6

Same specs (2)

Products that have identical characteristics that impact interchangability

PZFR5D-11

Platinum

-

3.8/ 5

.043"19mm, ⌀14x1.25HR 5

PZFR5Q-11

Platinum

-

3.8/ 5

.043"19mm, ⌀14x1.25HR 5

One step colder (1)

Colder spark plugs with same characteristics for moderately tuned engines (75–100 hp increase)

PZFR6J-11

Platinum

-

3.8/ 5

.043"19mm, ⌀14x1.25HR 6
