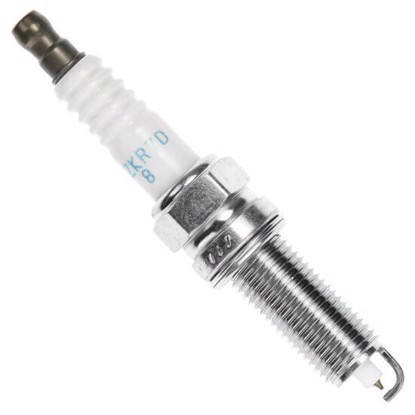

NGK ILZKR7D8 96412 Spark Plug

View on

Verify with Amazon ConfirmedFit before buying

Rating

4.2 / 5 Overall
NGK	ILZKR7D8
Brand	Code
4.5 / 5 Materials
Platinum	Iridium
Ground electrode	Center electrode
3.5 / 5 Design
Standard	Fine Wire
Ground type	Center type

Specifications

0.8mm (.031")	7
Gap	Heat range
⌀12mm	1.25mm
Thread diameter	Thread pitch
26.5mm (1.04")	16mm (5/8")
Reach	Hex size
Gasket	Solid
Seat	Terminal
1	Non-Projected
Ground count	Projection

Cross-reference and alternatives

Same specs (3)

Products that have identical characteristics that impact interchangability

ZXU22HCR8

Iridium-Platinum

-

4.2/ 5

.031"26.5mm, ⌀12x1.25HR 22

SILZKR7B8E

Iridium-Platinum

-

4.2/ 5

.031"26.5mm, ⌀12x1.25HR 7

PLZKBR7B8DG

Copper-Platinum

3.5/ 5

.031"26.5mm, ⌀12x1.25HR 7

Bigger gap (3)

0.1..0.3 mm gap increase for better performance given your ignition system can handle it

ILZKR7B-11S

Iridium-Platinum

-

4.2/ 5

.043"26.5mm, ⌀12x1.25HR 7

SILZKR7E11

Iridium-Platinum

-

4.2/ 5

.043"26.5mm, ⌀12x1.25HR 7

ILZKR7B11

Iridium-Platinum

-

4.2/ 5

.043"26.5mm, ⌀12x1.25HR 7
