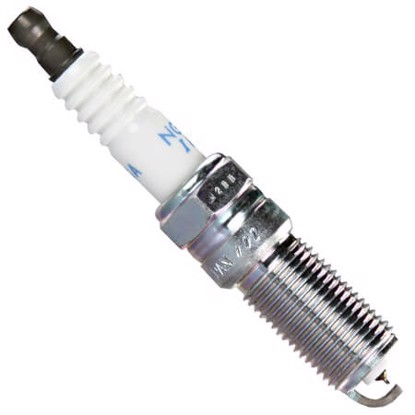

NGK ILTR6A-13G 3789 Spark Plug

View on

Verify with Amazon ConfirmedFit before buying

Rating

4.2 / 5 Overall
NGK	ILTR6A-13G
Brand	Code
4.5 / 5 Materials
Platinum	Iridium
Ground electrode	Center electrode
3.5 / 5 Design
Standard	Fine Wire
Ground type	Center type

Specifications

1.3mm (.050")	6
Gap	Heat range
⌀14mm	1.25mm
Thread diameter	Thread pitch
25mm (1")	16mm (5/8")
Reach	Hex size
Tapered	Solid
Seat	Terminal
1	Non-Projected
Ground count	Projection

Cross-reference and alternatives

Cross-reference (1)

Alternative spark plugs found in cross-reference docs provided by manufacturers

XP5364

Iridium-Platinum

-

4.2/ 5

.055"25mm, ⌀14x1.25HR 2

Deep reference (7)

A second level of cross-reference: if A=B and B=C, then A=C

SILTR6A7G

Iridium-Platinum

4.4/ 5

.028"25mm, ⌀14x1.25HR 6

ILTR5A-13G

Iridium-Platinum

-

4.2/ 5

.050"25mm, ⌀14x1.25HR 5

ILTR5C11

Iridium-Platinum

-

4.2/ 5

.043"25mm, ⌀14x1.25HR 5

ILTR5B11

Iridium-Platinum

-

4.2/ 5

.043"25mm, ⌀14x1.25HR 5

ILTR6A-8G

Iridium-Platinum

-

4.2/ 5

.031"25mm, ⌀14x1.25HR 6

LTR5IX-11

Copper-Iridium

3.8/ 5

.043"25mm, ⌀14x1.25HR 5

LTR6IX-11

Copper-Iridium

3.8/ 5

.043"25mm, ⌀14x1.25HR 6

Same specs (2)

Products that have identical characteristics that impact interchangability

LTR6AI13

Iridium-Platinum

-

4.2/ 5

.050"25mm, ⌀14x1.25HR 6

LTR6BP13

Platinum

3.8/ 5

.050"25mm, ⌀14x1.25HR 6
