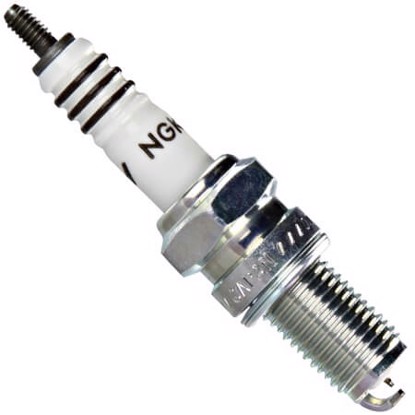

NGK DR7EIX Spark Plug

View on

Verify with Amazon ConfirmedFit before buying

Rating

3.8 / 5 Overall
NGK	DR7EIX
Brand	Code
4.0 / 5 Materials
Copper	Iridium
Ground electrode	Center electrode
3.5 / 5 Design
Standard	Fine Wire
Ground type	Center type

Specifications

0.8mm (.031")	7
Gap	Heat range
⌀12mm	1.25mm
Thread diameter	Thread pitch
19mm (3/4")	18mm ()
Reach	Hex size
Gasket	Threaded Stud
Seat	Terminal
1	Non-Projected
Ground count	Projection

Cross-reference and alternatives

Cross-reference (3)

Alternative spark plugs found in cross-reference docs provided by manufacturers

IX22

Copper-Iridium

4.3/ 5

.031"19mm, ⌀12x1.25HR 22

XS4163

Iridium-Platinum

4.2/ 5

.031"19mm, ⌀12x1.25HR 2

4163

Copper

2.9/ 5

.031"19mm, ⌀12x1.25HR 2

Deep reference (42)

A second level of cross-reference: if A=B and B=C, then A=C

IX24B

Copper-Iridium

4.3/ 5

.035"19mm, ⌀12x1.25HR 24

IX24B

Copper-Iridium

4.3/ 5

.035"19mm, ⌀12x1.25HR 24

DPR8EIX-9

Copper-Iridium

-

3.8/ 5

.035"19mm, ⌀12x1.25HR 8

DR8EIX

Copper-Iridium

-

3.8/ 5

.031"19mm, ⌀12x1.25HR 8

DCPR8EIX

Copper-Iridium

-

3.8/ 5

.031"19mm, ⌀12x1.25HR 8

DPR8EIX-9

Copper-Iridium

-

3.8/ 5

.035"19mm, ⌀12x1.25HR 8

DR8EIX

Copper-Iridium

-

3.8/ 5

.031"19mm, ⌀12x1.25HR 8

DPR8EVX-9

Copper-Platinum

3.5/ 5

.035"19mm, ⌀12x1.25HR 8

DP8EVX-9

Copper-Platinum

3.5/ 5

.035"19mm, ⌀12x1.25HR 8

DPR8EVX-9

Copper-Platinum

3.5/ 5

.035"19mm, ⌀12x1.25HR 8

DP8EVX-9

Copper-Platinum

3.5/ 5

.035"19mm, ⌀12x1.25HR 8

DP8EV-9

Copper-Gold-Palladium

3.4/ 5

.035"19mm, ⌀12x1.25HR 8

DPR8EV-9

Copper-Gold-Palladium

3.4/ 5

.035"19mm, ⌀12x1.25HR 8

DP8EV-9

Copper-Gold-Palladium

3.4/ 5

.035"19mm, ⌀12x1.25HR 8

DPR8EV-9

Copper-Gold-Palladium

3.4/ 5

.035"19mm, ⌀12x1.25HR 8

XR4CS

Copper-Silver

3.3/ 5

.028"19mm, ⌀12x1.25HR 4

X24EPR-U9

Copper

3.3/ 5

.035"19mm, ⌀12x1.25HR 24

X24EP-U9

Copper

3.3/ 5

.035"19mm, ⌀12x1.25HR 24

XR4CS

Copper-Silver

3.3/ 5

.028"19mm, ⌀12x1.25HR 4

X24EPR-U9

Copper

3.3/ 5

.035"19mm, ⌀12x1.25HR 24

X24EP-U9

Copper

3.3/ 5

.035"19mm, ⌀12x1.25HR 24

D7EA

Copper

2.9/ 5

.028"19mm, ⌀12x1.25HR 7

DR7EA

Copper

2.9/ 5

.028"19mm, ⌀12x1.25HR 7

DR7EB

Copper

2.9/ 5

.028"19mm, ⌀12x1.25HR 7

DR7ES

Copper

2.9/ 5

.028"19mm, ⌀12x1.25HR 7

4132

Copper

2.9/ 5

.028"19mm, ⌀12x1.25HR 1

D7EA

Copper

2.9/ 5

.028"19mm, ⌀12x1.25HR 7

DP8EA-9

Copper

2.9/ 5

.035"19mm, ⌀12x1.25HR 8

DPR8EA-9

Copper

2.9/ 5

.035"19mm, ⌀12x1.25HR 8

DR7EA

Copper

2.9/ 5

.028"19mm, ⌀12x1.25HR 7

DR8ES

Copper

2.9/ 5

.028"19mm, ⌀12x1.25HR 8

D7EA

Copper

2.9/ 5

.028"19mm, ⌀12x1.25HR 7

DP8EA-9

Copper

2.9/ 5

.035"19mm, ⌀12x1.25HR 8

DPR8EA-9

Copper

2.9/ 5

.035"19mm, ⌀12x1.25HR 8

DR7EA

Copper

2.9/ 5

.028"19mm, ⌀12x1.25HR 7

DR8EA

Copper

2.9/ 5

.028"19mm, ⌀12x1.25HR 8

DR8ES

Copper

2.9/ 5

.028"19mm, ⌀12x1.25HR 8

DR8ES-L

Copper

2.9/ 5

.028"19mm, ⌀12x1.25HR 8

DPR8Z

Copper

2.8/ 5

.028"19mm, ⌀12x1.25HR 8

DPR9Z

Copper

2.8/ 5

.028"19mm, ⌀12x1.25HR 9

DPR8Z

Copper

2.8/ 5

.028"19mm, ⌀12x1.25HR 8

DPR9Z

Copper

2.8/ 5

.028"19mm, ⌀12x1.25HR 9

One step colder (1)

Colder spark plugs with same characteristics for moderately tuned engines (75–100 hp increase)

DR8EIX

Copper-Iridium

-

3.8/ 5

.031"19mm, ⌀12x1.25HR 8

Two steps colder (1)

Two steps colder spark plugs with same characteristics for heavily modified engines (150-200 hp increase)

DR9EIX

Copper-Iridium

-

3.8/ 5

.031"19mm, ⌀12x1.25HR 9
