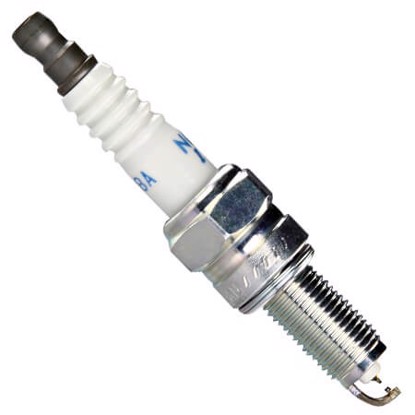

NGK DIMR8A10 5066 Spark Plug

View on

Verify with Amazon ConfirmedFit before buying

Rating

4.7 / 5 Overall
NGK	DIMR8A10
Brand	Code
4.5 / 5 Materials
Platinum	Iridium
Ground electrode	Center electrode
5.0 / 5 Design
Fine Wire	Fine Wire
Ground type	Center type

Specifications

1mm (.039")	8
Gap	Heat range
⌀10mm	1mm
Thread diameter	Thread pitch
19mm (3/4")	16mm (5/8")
Reach	Hex size
Gasket	Solid
Seat	Terminal
1	Non-Projected
Ground count	Projection

Cross-reference and alternatives

Cross-reference (1)

Alternative spark plugs found in cross-reference docs provided by manufacturers

IU24

Copper-Iridium

4.3/ 5

.035"19mm, ⌀10x1HR 24

Deep reference (8)

A second level of cross-reference: if A=B and B=C, then A=C

SIMR8A9

Iridium-Platinum

4.4/ 5

.035"19mm, ⌀10x1HR 8

CR8EIX

Copper-Iridium

3.8/ 5

.031"19mm, ⌀10x1HR 8

PMR8A

Platinum

3.8/ 5

.028"19mm, ⌀10x1HR 8

PMR8B

Platinum

3.8/ 5

.028"19mm, ⌀10x1HR 8

RG6YC

Copper

3.3/ 5

.030"19mm, ⌀10x1HR 6

C8E

Copper

2.9/ 5

.031"19mm, ⌀10x1HR 8

CR8E

Copper

2.9/ 5

.031"19mm, ⌀10x1HR 8

CR8EB

Copper

2.9/ 5

.031"19mm, ⌀10x1HR 8

Same specs (1)

Products that have identical characteristics that impact interchangability

DIMR8C10

Iridium-Platinum

-

4.7/ 5

.039"19mm, ⌀10x1HR 8
