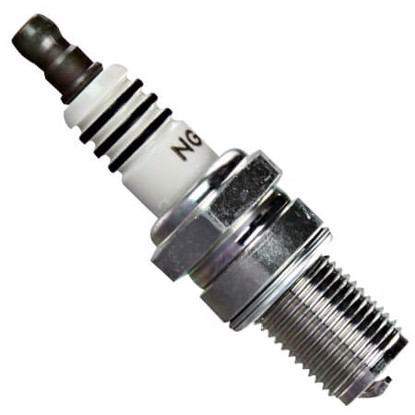

NGK BR8ECMIX Spark Plug

View on

Verify with Amazon ConfirmedFit before buying

Rating

4.0 / 5 Overall
NGK	BR8ECMIX
Brand	Code
4.0 / 5 Materials
Copper	Iridium
Ground electrode	Center electrode
4.0 / 5 Design
Low-Angled	Fine Wire
Ground type	Center type

Specifications

0.8mm (.031")	8
Gap	Heat range
⌀14mm	1.25mm
Thread diameter	Thread pitch
19mm (3/4")	21mm (13/16")
Reach	Hex size
Gasket	Solid
Seat	Terminal
1	Non-Projected
Ground count	Projection

Cross-reference and alternatives

Cross-reference (1)

Alternative spark plugs found in cross-reference docs provided by manufacturers

IWM24

Copper-Iridium

4.3/ 5

.031"19mm, ⌀14x1.25HR 24

Deep reference (1)

A second level of cross-reference: if A=B and B=C, then A=C

BR8ECM

Copper

3.1/ 5

.031"19mm, ⌀14x1.25HR 8

Same specs (3)

Products that have identical characteristics that impact interchangability

BR8ECSIX

Copper-Iridium

-

4.0/ 5

.031"19mm, ⌀14x1.25HR 8

BR8ECM

Copper

3.1/ 5

.031"19mm, ⌀14x1.25HR 8

BR8ECS

Copper

3.1/ 5

.031"19mm, ⌀14x1.25HR 8

One step colder (4)

Colder spark plugs with same characteristics for moderately tuned engines (75–100 hp increase)

BR9ECMIX

Copper-Iridium

-

4.0/ 5

.031"19mm, ⌀14x1.25HR 9

BR9ECSIX

Copper-Iridium

-

4.0/ 5

.031"19mm, ⌀14x1.25HR 9

BR9ECM

Copper

3.1/ 5

.031"19mm, ⌀14x1.25HR 9

BR9ECS

Copper

3.1/ 5

.031"19mm, ⌀14x1.25HR 9

Two steps colder (4)

Two steps colder spark plugs with same characteristics for heavily modified engines (150-200 hp increase)

BR10ECMIX

Copper-Iridium

-

4.0/ 5

.031"19mm, ⌀14x1.25HR 10

BR10ECM

Copper

3.1/ 5

.031"19mm, ⌀14x1.25HR 10

BR10ECS

Copper

3.1/ 5

.031"19mm, ⌀14x1.25HR 10

BR10ECS Solid

Copper

3.1/ 5

.031"19mm, ⌀14x1.25HR 10
