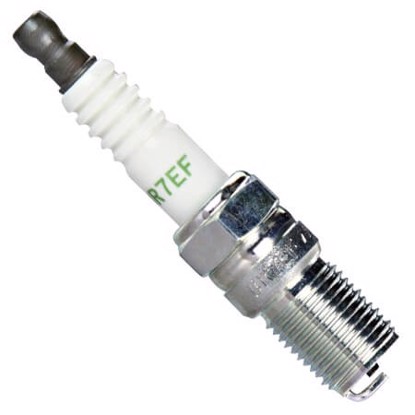

NGK BR7EF 3346 Spark Plug

View on

Verify with Amazon ConfirmedFit before buying

Rating

3.1 / 5 Overall
NGK	BR7EF
Brand	Code
3.0 / 5 Materials
Copper	Copper
Ground electrode	Center electrode
3.3 / 5 Design
Standard	V-Cut
Ground type	Center type

Specifications

0.7mm (.028")	7
Gap	Heat range
⌀14mm	1.25mm
Thread diameter	Thread pitch
18mm (.709")	16mm (5/8")
Reach	Hex size
Tapered	Solid
Seat	Terminal
1	Non-Projected
Ground count	Projection

Cross-reference and alternatives

Cross-reference (3)

Alternative spark plugs found in cross-reference docs provided by manufacturers

IT22

Copper-Iridium

4.3/ 5

.031"17.5mm, ⌀14x1.25HR 22

T22EP-U

Copper

3.3/ 5

.031"18mm, ⌀14x1.25HR 22

103

Copper

2.9/ 5

.050"17.5mm, ⌀14x1.25HR 1

Deep reference (19)

A second level of cross-reference: if A=B and B=C, then A=C

IT20

Copper-Iridium

4.3/ 5

.043"17.5mm, ⌀14x1.25HR 20

XP103

Iridium-Platinum

4.2/ 5

.050"17.5mm, ⌀14x1.25HR 1

VT20

Iridium-Platinum

4.2/ 5

.043"17.5mm, ⌀14x1.25HR 20

TR7IX

Copper-Iridium

3.8/ 5

.039"18mm, ⌀14x1.25HR 7

S9YC

Copper

3.3/ 5

.026"17.5mm, ⌀14x1.25HR 9

T22EP-U

Copper

3.3/ 5

.031"18mm, ⌀14x1.25HR 22

T20EPR-U

Copper

3.3/ 5

.031"18mm, ⌀14x1.25HR 20

TR6

Copper

-

3.1/ 5

.039"18mm, ⌀14x1.25HR 6

BP7EFS

Copper

2.9/ 5

.031"18mm, ⌀14x1.25HR 7

BR7EFS

Copper

2.9/ 5

.028"18mm, ⌀14x1.25HR 7

BP7EFS

Copper

2.9/ 5

.031"18mm, ⌀14x1.25HR 7

BR7EFS

Copper

2.9/ 5

.028"18mm, ⌀14x1.25HR 7

103

Copper

2.9/ 5

.050"17.5mm, ⌀14x1.25HR 1

HR7DC+ 7918

Copper

2.9/ 5

.031"17.5mm, ⌀14x1.25HR 7

RS9YC

Copper

2.9/ 5

.035"17.5mm, ⌀14x1.25HR 9

BP7EFS

Copper

2.9/ 5

.031"18mm, ⌀14x1.25HR 7

BR7EFS

Copper

2.9/ 5

.028"18mm, ⌀14x1.25HR 7

BU6EFSZ

Copper

2.9/ 5

.026"18mm, ⌀14x1.25HR 6

BPR6EFS

Copper

2.9/ 5

.031"18mm, ⌀14x1.25HR 6

Same specs (1)

Products that have identical characteristics that impact interchangability

BR7EFS

Copper

2.9/ 5

.028"18mm, ⌀14x1.25HR 7
