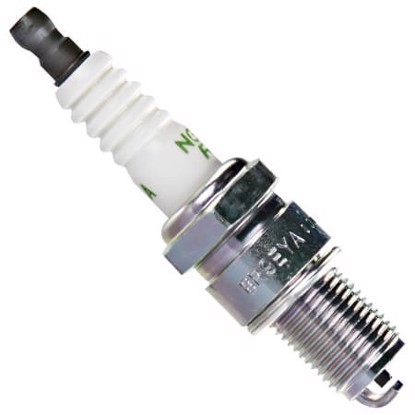

NGK BR10EYA 7613 Spark Plug

View on

Verify with Amazon ConfirmedFit before buying

Rating

3.1 / 5 Overall
NGK	BR10EYA
Brand	Code
3.0 / 5 Materials
Copper	Copper
Ground electrode	Center electrode
3.3 / 5 Design
Standard	V-Cut
Ground type	Center type

Specifications

0.8mm (.031")	10
Gap	Heat range
⌀14mm	1.25mm
Thread diameter	Thread pitch
19mm (3/4")	21mm (13/16")
Reach	Hex size
Gasket	Solid
Seat	Terminal
1	Non-Projected
Ground count	Projection

Cross-reference and alternatives

Cross-reference (4)

Alternative spark plugs found in cross-reference docs provided by manufacturers

IW31

Copper-Iridium

4.3/ 5

.028"19mm, ⌀14x1.25HR 31

AR2592

Copper

3.3/ 5

.024"19mm, ⌀14x1.25HR 1

W31ESR-U

Copper

3.3/ 5

.031"19mm, ⌀14x1.25HR 31

4051

Copper

2.9/ 5

.024"19mm, ⌀14x1.25HR 1

Deep reference (39)

A second level of cross-reference: if A=B and B=C, then A=C

IW31

Copper-Iridium

4.3/ 5

.028"19mm, ⌀14x1.25HR 31

XS4062

Iridium-Platinum

4.2/ 5

.031"19mm, ⌀14x1.25HR 2

XS4062

Iridium-Platinum

4.2/ 5

.031"19mm, ⌀14x1.25HR 2

BR10EIX

Copper-Iridium

3.8/ 5

.031"19mm, ⌀14x1.25HR 10

BR10HIX

Copper-Iridium

3.8/ 5

.031"12.7mm, ⌀14x1.25HR 10

BR10EIX

Copper-Iridium

3.8/ 5

.031"19mm, ⌀14x1.25HR 10

BR10HIX

Copper-Iridium

3.8/ 5

.031"12.7mm, ⌀14x1.25HR 10

BR10EIX

Copper-Iridium

3.8/ 5

.031"19mm, ⌀14x1.25HR 10

R6918B-8

Copper-Platinum

3.8/ 5

.024"19mm, ⌀14x1.25HR 8

R7435-10

Copper-Iridium

3.8/ 5

.028"19mm, ⌀14x1.25HR 10

B10EGP

Copper-Platinum

3.7/ 5

.026"19mm, ⌀14x1.25HR 10

241268506

Copper-Silver

3.5/ 5

.024"19mm, ⌀14x1.25HR -8

C59

Copper

3.5/ 5

.026"19mm, ⌀14x1.25HR 59

B10EGV

Copper-Gold-Palladium

3.4/ 5

.026"19mm, ⌀14x1.25HR 10

B95EGV

Copper-Gold-Palladium

3.4/ 5

.026"19mm, ⌀14x1.25HR 9

B10EGV

Copper-Gold-Palladium

3.4/ 5

.026"19mm, ⌀14x1.25HR 10

W27ES-U

Copper

3.3/ 5

.028"19mm, ⌀14x1.25HR 27

BR7ET

Copper

3.3/ 5

.041"19mm, ⌀14x1.25HR 7

R6061-10

Copper

3.3/ 5

.031"19mm, ⌀14x1.25HR 10

B10EG

Copper

3.2/ 5

.024"19mm, ⌀14x1.25HR 10

R6021E-10

Copper

3.2/ 5

.026"19mm, ⌀14x1.25HR 10

BR10EG

Copper

3.2/ 5

.024"19mm, ⌀14x1.25HR 10

BR10EG

Copper

3.2/ 5

.024"19mm, ⌀14x1.25HR 10

B10EG

Copper

3.2/ 5

.024"19mm, ⌀14x1.25HR 10

BR10EG

Copper

3.2/ 5

.024"19mm, ⌀14x1.25HR 10

BR10ECS

Copper

-

3.1/ 5

.031"19mm, ⌀14x1.25HR 10

R5671A-10

Copper

-

3.1/ 5

.020"19mm, ⌀14x1.25HR 10

BR10ECS

Copper

-

3.1/ 5

.031"19mm, ⌀14x1.25HR 10

BR10ECS

Copper

-

3.1/ 5

.031"19mm, ⌀14x1.25HR 10

B10ES

Copper

2.9/ 5

.020"19mm, ⌀14x1.25HR 10

BR10ES

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 10

4051

Copper

2.9/ 5

.024"19mm, ⌀14x1.25HR 1

4062

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 2

B10ES

Copper

2.9/ 5

.020"19mm, ⌀14x1.25HR 10

BR10ES

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 10

BR10ES

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 10

4062

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 2

B10ES

Copper

2.9/ 5

.020"19mm, ⌀14x1.25HR 10

BR10ES

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 10

Same specs (4)

Products that have identical characteristics that impact interchangability

BR10EIX SOLID

Copper-Iridium

3.8/ 5

.031"19mm, ⌀14x1.25HR 10

BR10EIX

Copper-Iridium

3.8/ 5

.031"19mm, ⌀14x1.25HR 10

BR10ES SOLID

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 10

BR10ES

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 10
