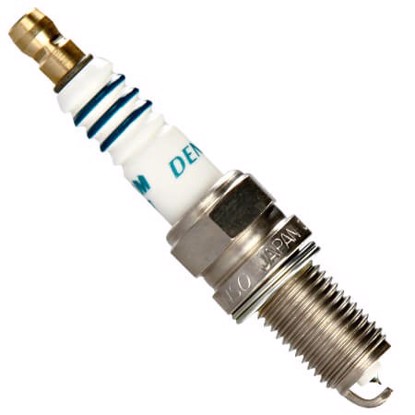

Denso IXU22 5308 Spark Plug

View on

Verify with Amazon ConfirmedFit before buying

Rating

4.3 / 5 Overall
Denso	IXU22
Brand	Code
4.0 / 5 Materials
Copper	Iridium
Ground electrode	Center electrode
4.8 / 5 Design
U-Groove	Fine Wire
Ground type	Center type

Specifications

0.9mm (.035")	22
Gap	Heat range
⌀12mm	1.25mm
Thread diameter	Thread pitch
19mm (3/4")	16mm (5/8")
Reach	Hex size
Gasket	Removable Nut
Seat	Terminal
1	Non-Projected
Ground count	Projection

Cross-reference and alternatives

Cross-reference (9)

Alternative spark plugs found in cross-reference docs provided by manufacturers

DCPR7EIX

Copper-Iridium

3.8/ 5

.031"19mm, ⌀12x1.25HR 7

242135510

Platinum

3.8/ 5

.035"19mm, ⌀12x1.25HR 7

DCPR6EIX

Copper-Iridium

3.8/ 5

.031"19mm, ⌀12x1.25HR 6

PKR7A

Platinum

3.8/ 5

.028"19mm, ⌀12x1.25HR 7

DCPR7EGP

Copper-Platinum

3.5/ 5

.031"19mm, ⌀12x1.25HR 7

Y6DC

Copper

2.9/ 5

.024"19mm, ⌀12x1.25HR 6

DCPR6E

Copper

2.9/ 5

.035"19mm, ⌀12x1.25HR 6

DCPR7E

Copper

2.9/ 5

.031"19mm, ⌀12x1.25HR 7

RA8HC

Copper

2.9/ 5

.024"19mm, ⌀12x1.25HR 8

Deep reference (19)

A second level of cross-reference: if A=B and B=C, then A=C

VXU22

Iridium-Platinum

4.2/ 5

.035"19mm, ⌀12x1.25HR 22

VXU22

Iridium-Platinum

4.2/ 5

.035"19mm, ⌀12x1.25HR 22

VXU22

Iridium-Platinum

4.2/ 5

.035"19mm, ⌀12x1.25HR 22

VXU22

Iridium-Platinum

4.2/ 5

.035"19mm, ⌀12x1.25HR 22

VXU22

Iridium-Platinum

4.2/ 5

.035"19mm, ⌀12x1.25HR 22

VXU22

Iridium-Platinum

4.2/ 5

.035"19mm, ⌀12x1.25HR 22

VXU22

Iridium-Platinum

4.2/ 5

.035"19mm, ⌀12x1.25HR 22

VXU22

Iridium-Platinum

4.2/ 5

.035"19mm, ⌀12x1.25HR 22

VXU22

Iridium-Platinum

4.2/ 5

.035"19mm, ⌀12x1.25HR 22

242135510

Platinum

3.8/ 5

.035"19mm, ⌀12x1.25HR 7

8812-1

Copper

3.2/ 5

.030"19mm, ⌀12x1.25HR 8

DCPR6E

Copper

2.9/ 5

.035"19mm, ⌀12x1.25HR 6

DCPR6E

Copper

2.9/ 5

.035"19mm, ⌀12x1.25HR 6

DCPR8E

Copper

2.9/ 5

.028"19mm, ⌀12x1.25HR 8

Y6DC

Copper

2.9/ 5

.024"19mm, ⌀12x1.25HR 6

RA8GHC

Copper

2.9/ 5

.039"19mm, ⌀12x1.25HR 8

RA7YC

Copper

2.9/ 5

.033"19mm, ⌀12x1.25HR 7

RA8HC

Copper

2.9/ 5

.024"19mm, ⌀12x1.25HR 8

DCPR7E

Copper

2.9/ 5

.031"19mm, ⌀12x1.25HR 7

Same specs (1)

Products that have identical characteristics that impact interchangability

XU22EPRU

Copper

3.3/ 5

.035"19mm, ⌀12x1.25HR 22

One step colder (2)

Colder spark plugs with same characteristics for moderately tuned engines (75–100 hp increase)

IXU24

Copper-Iridium

-

4.3/ 5

.035"19mm, ⌀12x1.25HR 24

XU24EPRU

Copper

3.3/ 5

.035"19mm, ⌀12x1.25HR 24

Two steps colder (2)

Two steps colder spark plugs with same characteristics for heavily modified engines (150-200 hp increase)

IXU27

Copper-Iridium

-

4.3/ 5

.035"19mm, ⌀12x1.25HR 27

XU27EPR-U

Copper

3.3/ 5

.035"19mm, ⌀12x1.25HR 27
