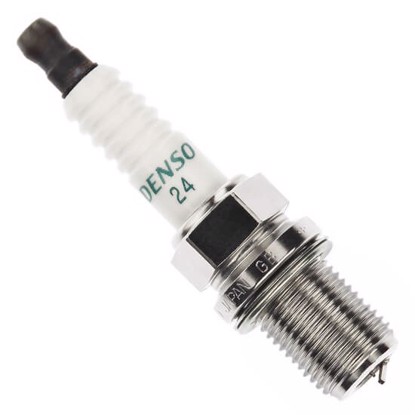

Denso IK01-24 Spark Plug

View on

Verify with Amazon ConfirmedFit before buying

Rating

4.5 / 5 Overall
Denso	IK01-24
Brand	Code
4.5 / 5 Materials
Platinum	Iridium
Ground electrode	Center electrode
4.5 / 5 Design
Slant	Fine Wire
Ground type	Center type

Specifications

0.6mm (.024")	24
Gap	Heat range
⌀14mm	1.25mm
Thread diameter	Thread pitch
19mm (3/4")	16mm (5/8")
Reach	Hex size
Gasket	Solid
Seat	Terminal
1	Non-Projected
Ground count	Projection

Cross-reference and alternatives

Cross-reference (1)

Alternative spark plugs found in cross-reference docs provided by manufacturers

R7434-8

Iridium-Platinum

-

4.5/ 5

.028"19mm, ⌀14x1.25HR 8

Deep reference (2)

A second level of cross-reference: if A=B and B=C, then A=C

IK02-24

Iridium-Platinum

4.3/ 5

.028"19mm, ⌀14x1.25HR 24

C61

Copper

3.5/ 5

.026"19mm, ⌀14x1.25HR 61

Bigger gap (1)

0.1..0.3 mm gap increase for better performance given your ignition system can handle it

IQ01-24

Iridium-Platinum

-

4.5/ 5

.028"19mm, ⌀14x1.25HR 24

Two steps colder (1)

Two steps colder spark plugs with same characteristics for heavily modified engines (150-200 hp increase)

R7282-10

Iridium-Platinum

-

4.5/ 5

.024"19mm, ⌀14x1.25HR 10
