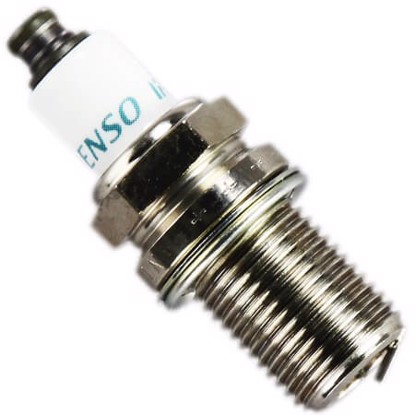

Denso IAE01-32 Spark Plug

View on

Verify with Amazon ConfirmedFit before buying

Rating

4.5 / 5 Overall
Denso	IAE01-32
Brand	Code
4.5 / 5 Materials
Platinum	Iridium
Ground electrode	Center electrode
4.5 / 5 Design
Slant	Fine Wire
Ground type	Center type

Specifications

0.6mm (.024")	32
Gap	Heat range
⌀14mm	1.25mm
Thread diameter	Thread pitch
19mm (3/4")	16mm (5/8")
Reach	Hex size
Gasket	Solid
Seat	Terminal
1	Non-Projected
Ground count	Projection

Cross-reference and alternatives

Cross-reference (1)

Alternative spark plugs found in cross-reference docs provided by manufacturers

R7282-105

Iridium-Platinum

-

4.5/ 5

.024"19mm, ⌀14x1.25HR 10.5

Deep reference (1)

A second level of cross-reference: if A=B and B=C, then A=C

IWM01-32

Iridium-Platinum

-

4.5/ 5

.024"19mm, ⌀14x1.25HR 32
