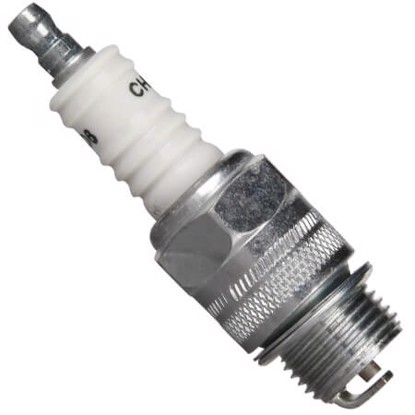

Champion D6 506 Spark Plug

View on

Verify with Amazon ConfirmedFit before buying

Rating

2.8 / 5 Overall
Champion	D6
Brand	Code
3.0 / 5 Materials
Copper	Copper
Ground electrode	Center electrode
2.3 / 5 Design
Standard	Oversized
Ground type	Center type

Specifications

0.65mm (.026")	6
Gap	Heat range
⌀18mm	1.5mm
Thread diameter	Thread pitch
12.7mm (1/2")	22mm (7/8")
Reach	Hex size
Gasket	Removable Nut
Seat	Terminal
1	Non-Projected
Ground count	Projection

Cross-reference and alternatives

Cross-reference (2)

Alternative spark plugs found in cross-reference docs provided by manufacturers

373

Copper

2.9/ 5

.024"12.7mm, ⌀18x1.5HR 1

AB-8

Copper

2.9/ 5

.028"11mm, ⌀18x1.5HR 8

Deep reference (5)

A second level of cross-reference: if A=B and B=C, then A=C

D14N .025

Copper

3.1/ 5

.024"12.7mm, ⌀18x1.5HR 14

M22

Copper

2.9/ 5

.028"12mm, ⌀18x1.5HR 22

AB-7

Copper

2.9/ 5

.028"11mm, ⌀18x1.5HR 7

M24S

Copper

2.9/ 5

.028"12mm, ⌀18x1.5HR 24

D9

Copper

-

2.8/ 5

.026"12.7mm, ⌀18x1.5HR 9
