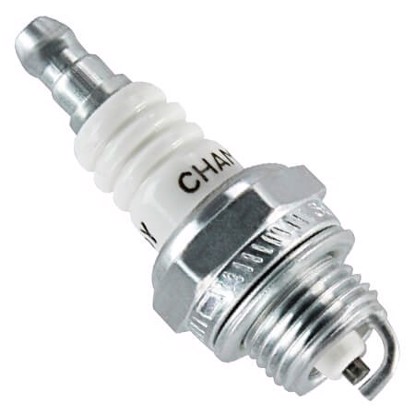

Champion 863S Spark Plug

View on

Verify with Amazon ConfirmedFit before buying

Rating

2.9 / 5 Overall
Champion	863S
Brand	Code
3.0 / 5 Materials
Copper	Copper
Ground electrode	Center electrode
2.8 / 5 Design
Standard	Standard
Ground type	Center type

Specifications

0.6mm (.024")	8
Gap	Heat range
⌀14mm	1.25mm
Thread diameter	Thread pitch
9.5mm (3/8")	19mm (3/4")
Reach	Hex size
Gasket	Solid
Seat	Terminal
1	Non-Projected
Ground count	Projection

Cross-reference and alternatives

Cross-reference (1)

Alternative spark plugs found in cross-reference docs provided by manufacturers

BPMR6A

Copper

-

2.9/ 5

.028"9.5mm, ⌀14x1.25HR 6

Deep reference (5)

A second level of cross-reference: if A=B and B=C, then A=C

XST2976

Iridium-Platinum

4.2/ 5

.024"9.5mm, ⌀14x1.25HR 4

WSR6F

Copper

3.3/ 5

.020"9.5mm, ⌀14x1.25HR 6

W20MPU

Copper

3.3/ 5

.024"9.5mm, ⌀14x1.25HR 20

RCJ8Y

Copper

-

2.9/ 5

.024"9.5mm, ⌀14x1.25HR 8

2976

Copper

-

2.9/ 5

.024"9.5mm, ⌀14x1.25HR 4

Same specs (2)

Products that have identical characteristics that impact interchangability

863-1

Copper

-

2.9/ 5

.024"9.5mm, ⌀14x1.25HR 8

RCJ8Y

Copper

-

2.9/ 5

.024"9.5mm, ⌀14x1.25HR 8

One step colder (4)

Colder spark plugs with same characteristics for moderately tuned engines (75–100 hp increase)

852ECO

Copper

-

2.9/ 5

.024"9.5mm, ⌀14x1.25HR 6

852S

Copper

-

2.9/ 5

.024"9.5mm, ⌀14x1.25HR 6

852-1

Copper

-

2.9/ 5

.024"9.5mm, ⌀14x1.25HR 6

RCJ6Y

Copper

-

2.9/ 5

.024"9.5mm, ⌀14x1.25HR 6
