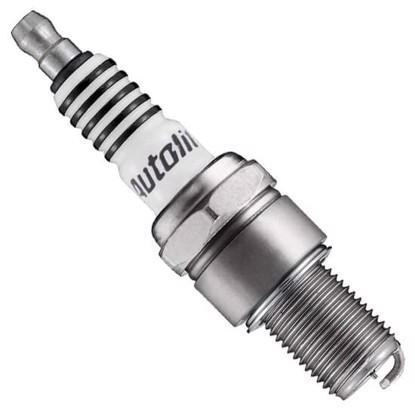

Autolite XS4064 Spark Plug

Verify with Amazon ConfirmedFit before buying

Rating
Brand	Code
4.2 / 5 Overall
Autolite	XS4064
4.5 / 5 Materials
Platinum	Iridium-Platinum
Ground electrode	Center electrode
3.5 / 5 Design
Standard	Fine Wire
Ground type	Center type

Specifications
Gap	Heat range
0.8mm (.031")	4
⌀14mm	1.25mm
Thread diameter	Thread pitch
19mm (3/4")	21mm (13/16")
Reach	Hex size
Gasket	Removable Nut
Seat	Terminal
1	Non-Projected
Ground count	Projection

Cross-reference and alternatives

How we find alternative spark plugs How we rate spark plugs

Cross-reference (11)

Alternative spark plugs found in cross-reference docs provided by manufacturers

IW24

Copper-Iridium

4.3/ 5

.028"19mm, ⌀14x1.25HR 24

BR7EIX

Copper-Iridium

3.8/ 5

.031"19mm, ⌀14x1.25HR 7

W24ESR-U

Copper

3.3/ 5

.031"19mm, ⌀14x1.25HR 24

W24ES-U

Copper

3.3/ 5

.031"19mm, ⌀14x1.25HR 24

W24ESR-V

Copper

3.2/ 5

.024"19mm, ⌀14x1.25HR 24

W24ES-V

Copper

3.2/ 5

.024"19mm, ⌀14x1.25HR 24

N3C

Copper

2.9/ 5

.026"19mm, ⌀14x1.25HR 3

B7ES

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 7

B7ES-11

Copper

2.9/ 5

.043"19mm, ⌀14x1.25HR 7

BR7ES

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 7

BR7ES-11

Copper

2.9/ 5

.043"19mm, ⌀14x1.25HR 7

Deep reference (61)

A second level of cross-reference: if A=B and B=C, then A=C

IW24

Copper-Iridium

4.3/ 5

.028"19mm, ⌀14x1.25HR 24

XS4064DP

Iridium-Platinum

4.2/ 5

.031"19mm, ⌀14x1.25HR 4

XST4055

Iridium-Platinum

4.2/ 5

.024"19mm, ⌀14x1.25HR 7

BR8ECSIX

Copper-Iridium

4.0/ 5

.031"19mm, ⌀14x1.25HR 8

W3DP0

Copper-Platinum

3.9/ 5

.024"19mm, ⌀14x1.25HR 3

242250512

Copper-Platinum

3.9/ 5

.024"19mm, ⌀14x1.25HR 4

BPR8EIX

Copper-Iridium

3.8/ 5

.031"19mm, ⌀14x1.25HR 8

BR8EIX

Copper-Iridium

3.8/ 5

.031"19mm, ⌀14x1.25HR 8

BR8EIX

Copper-Iridium

3.8/ 5

.031"19mm, ⌀14x1.25HR 8

241256515

Copper-Silver

3.5/ 5

.024"19mm, ⌀14x1.25HR 3

W4CS

Copper-Silver

3.5/ 5

.024"19mm, ⌀14x1.25HR 4

B8EGV

Copper-Gold-Palladium

3.4/ 5

.026"19mm, ⌀14x1.25HR 8

R4118S-8

Copper-Gold-Palladium

3.4/ 5

.026"19mm, ⌀14x1.25HR 8

W22ESR-U

Copper

3.3/ 5

.031"19mm, ⌀14x1.25HR 22

W24ES-U

Copper

3.3/ 5

.031"19mm, ⌀14x1.25HR 24

W22ES-U

Copper

3.3/ 5

.031"19mm, ⌀14x1.25HR 22

W22ESR-U

Copper

3.3/ 5

.031"19mm, ⌀14x1.25HR 22

R6021E-8

Copper

3.2/ 5

.026"19mm, ⌀14x1.25HR 8

B8EG

Copper

3.2/ 5

.024"19mm, ⌀14x1.25HR 8

BR8EG

Copper

3.2/ 5

.024"19mm, ⌀14x1.25HR 8

BR8EG

Copper

3.2/ 5

.024"19mm, ⌀14x1.25HR 8

B8EG

Copper

3.2/ 5

.024"19mm, ⌀14x1.25HR 8

BR8ECS

Copper

3.1/ 5

.031"19mm, ⌀14x1.25HR 8

BR8ECS

Copper

3.1/ 5

.031"19mm, ⌀14x1.25HR 8

R5671A-8

Copper

3.1/ 5

.031"19mm, ⌀14x1.25HR 8

W3CC OBS

Copper

2.9/ 5

.020"19mm, ⌀14x1.25HR 3

B8ES

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 8

BP8ES

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 8

BPR8ES

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 8

BR8ES

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 8

BR8ES-11

Copper

2.9/ 5

.043"19mm, ⌀14x1.25HR 8

2594

Copper

2.9/ 5

.024"19mm, ⌀14x1.25HR 3

4054

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 4

N3C

Copper

2.9/ 5

.026"19mm, ⌀14x1.25HR 3

N6YC

Copper

2.9/ 5

.026"19mm, ⌀14x1.25HR 6

RN6YC

Copper

2.9/ 5

.026"19mm, ⌀14x1.25HR 6

4054

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 4

BR8ES

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 8

BR8ES-11

Copper

2.9/ 5

.043"19mm, ⌀14x1.25HR 8

403

Copper

2.9/ 5

.035"19mm, ⌀14x1.25HR 7

4054

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 4

W3CC OBS

Copper

2.9/ 5

.020"19mm, ⌀14x1.25HR 3

B8ES

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 8

2594

Copper

2.9/ 5

.024"19mm, ⌀14x1.25HR 3

4054

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 4

N3C

Copper

2.9/ 5

.026"19mm, ⌀14x1.25HR 3

4054

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 4

4054

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 4

403

Copper

2.9/ 5

.035"19mm, ⌀14x1.25HR 7

4054

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 4

B8ES

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 8

4055

Copper

2.9/ 5

.024"19mm, ⌀14x1.25HR 7

W5CC

Copper

2.9/ 5

.020"19mm, ⌀14x1.25HR 5

803C

Copper

2.9/ 5

.026"19mm, ⌀14x1.25HR 4

N4C

Copper

2.9/ 5

.026"19mm, ⌀14x1.25HR 4

4054

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 4

4054

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 4

RN4C

Copper

2.9/ 5

.024"19mm, ⌀14x1.25HR 4

4054

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 4

4054DP2

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 4

4054

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 4

Same specs (6)

Products that have identical characteristics that impact interchangability

XS4062

Iridium-Platinum

4.2/ 5

.031"19mm, ⌀14x1.25HR 2

XS4062DP

Iridium-Platinum

4.2/ 5

.031"19mm, ⌀14x1.25HR 2

XS4063

Iridium-Platinum

4.2/ 5

.031"19mm, ⌀14x1.25HR 3

XS4063DP

Iridium-Platinum

4.2/ 5

.031"19mm, ⌀14x1.25HR 3

XS4064DP

Iridium-Platinum

4.2/ 5

.031"19mm, ⌀14x1.25HR 4

4062

Copper

2.9/ 5

.031"19mm, ⌀14x1.25HR 2

Bigger gap (7)

0.1..0.3 mm gap increase for better performance given your ignition system can handle it

AP403

Copper-Platinum

3.2/ 5

.035"19mm, ⌀14x1.25HR 7

AP404

Copper-Platinum

3.2/ 5

.035"19mm, ⌀14x1.25HR 9

403

Copper

2.9/ 5

.035"19mm, ⌀14x1.25HR 7

403BP

Copper

2.9/ 5

.035"19mm, ⌀14x1.25HR 7

404

Copper

2.9/ 5

.035"19mm, ⌀14x1.25HR 9

404BP

Copper

2.9/ 5

.035"19mm, ⌀14x1.25HR 9

405

Copper

2.9/ 5

.035"19mm, ⌀14x1.25HR 10
