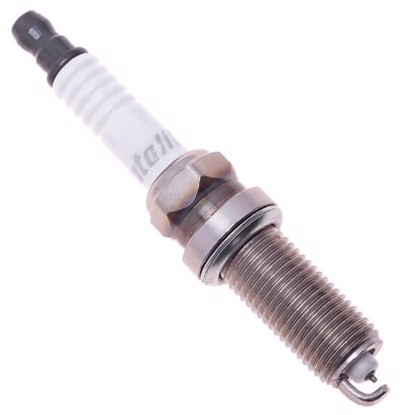

Autolite XP5683 Spark Plug

View on

Verify with Amazon ConfirmedFit before buying

Rating

4.2 / 5 Overall
Autolite	XP5683
Brand	Code
4.5 / 5 Materials
Platinum	Iridium-Platinum
Ground electrode	Center electrode
3.5 / 5 Design
Standard	Fine Wire
Ground type	Center type

Specifications

1.15mm (.045")	5
Gap	Heat range
⌀12mm	1.25mm
Thread diameter	Thread pitch
26.5mm (1.04")	14mm (9/16")
Reach	Hex size
Gasket	Solid
Seat	Terminal
1	Non-Projected
Ground count	Projection

Cross-reference and alternatives

Cross-reference (1)

Alternative spark plugs found in cross-reference docs provided by manufacturers

ILKAR7B11

Iridium-Platinum

-

4.2/ 5

.043"26.5mm, ⌀12x1.25HR 7

Deep reference (3)

A second level of cross-reference: if A=B and B=C, then A=C

VR7NII33X

Iridium

4.5/ 5

.043"26.5mm, ⌀12x1.25HR 7

SC20HR-11

Iridium-Platinum

-

4.2/ 5

.043"26.5mm, ⌀12x1.25HR 20

APP5683

Platinum

3.5/ 5

.045"26.5mm, ⌀12x1.25HR 5

Same specs (2)

Products that have identical characteristics that impact interchangability

XP5684

Iridium-Platinum

-

4.2/ 5

.045"26.5mm, ⌀12x1.25HR 6

APP5683

Platinum

3.5/ 5

.045"26.5mm, ⌀12x1.25HR 5
