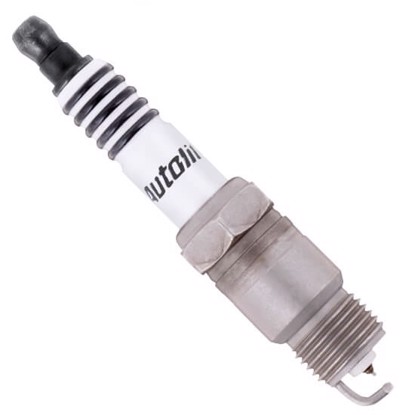

Autolite XP26DP2 Spark Plug

View on

Verify with Amazon ConfirmedFit before buying

Rating

4.2 / 5 Overall
Autolite	XP26DP2
Brand	Code
4.5 / 5 Materials
Platinum	Iridium-Platinum
Ground electrode	Center electrode
3.5 / 5 Design
Standard	Fine Wire
Ground type	Center type

Specifications

1.15mm (.045")	5
Gap	Heat range
⌀14mm	1.25mm
Thread diameter	Thread pitch
11mm (7/16")	16mm (5/8")
Reach	Hex size
Tapered	Solid
Seat	Terminal
1	Non-Projected
Ground count	Projection

Cross-reference and alternatives

Cross-reference (1)

Alternative spark plugs found in cross-reference docs provided by manufacturers

UR45IX

Copper-Iridium

3.8/ 5

.059"11.6mm, ⌀14x1.25HR 4

Deep reference (4)

A second level of cross-reference: if A=B and B=C, then A=C

XP666

Iridium-Platinum

-

4.2/ 5

.059"9.5mm, ⌀14x1.25HR 5

APP666

Platinum

3.5/ 5

.059"9.5mm, ⌀14x1.25HR 5

HR9BPY

Copper-Platinum

3.3/ 5

.059"11mm, ⌀14x1.25HR 9

HR9BPZ

Copper-Platinum

3.3/ 5

.079"11mm, ⌀14x1.25HR 9

Same specs (6)

Products that have identical characteristics that impact interchangability

XP25DP2

Iridium-Platinum

-

4.2/ 5

.045"11mm, ⌀14x1.25HR 4

APP25DP2

Platinum

3.5/ 5

.045"11mm, ⌀14x1.25HR 4

AP25DP2

Copper-Platinum

3.2/ 5

.045"11mm, ⌀14x1.25HR 4

AP26DP2

Copper-Platinum

3.2/ 5

.045"11mm, ⌀14x1.25HR 5

25DP2

Copper

2.9/ 5

.045"11mm, ⌀14x1.25HR 4

26DP2

Copper

2.9/ 5

.045"11mm, ⌀14x1.25HR 5
