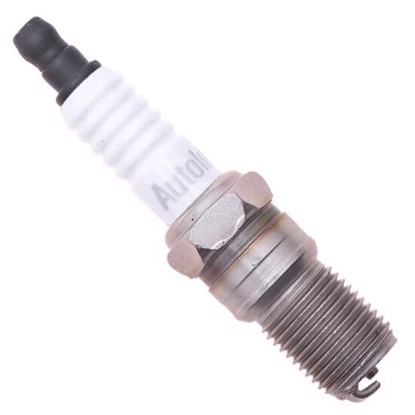

Autolite AR474 Spark Plug

View on

Verify with Amazon ConfirmedFit before buying

Rating

3.3 / 5 Overall
Autolite	AR474
Brand	Code
3.0 / 5 Materials
Copper	Copper
Ground electrode	Center electrode
3.8 / 5 Design
Cut Back	Standard
Ground type	Center type

Specifications

0.6mm (.024")	3
Gap	Heat range
⌀14mm	1.25mm
Thread diameter	Thread pitch
17.5mm (.689")	16mm (5/8")
Reach	Hex size
Tapered	Solid
Seat	Terminal
1	Non-Projected
Ground count	Projection

Cross-reference and alternatives

Cross-reference (3)

Alternative spark plugs found in cross-reference docs provided by manufacturers

S61C

Copper

-

3.3/ 5

.024"17.5mm, ⌀14x1.25HR 61

R5724-8

Copper

3.1/ 5

.020"18mm, ⌀14x1.25HR 8

B8EFS

Copper

2.9/ 5

.028"18mm, ⌀14x1.25HR 8

Deep reference (6)

A second level of cross-reference: if A=B and B=C, then A=C

IT24

Copper-Iridium

4.3/ 5

.031"17.5mm, ⌀14x1.25HR 24

IT24

Copper-Iridium

4.3/ 5

.031"17.5mm, ⌀14x1.25HR 24

C61

Copper

3.5/ 5

.026"19mm, ⌀14x1.25HR 61

S61YC

Copper

-

3.3/ 5

.026"17.5mm, ⌀14x1.25HR 61

AR94

Copper

-

3.3/ 5

.024"17.5mm, ⌀14x1.25HR 4

S63YC

Copper

-

3.3/ 5

.026"17.5mm, ⌀14x1.25HR 63

Same specs (2)

Products that have identical characteristics that impact interchangability

AR472

Copper

-

3.3/ 5

.024"17.5mm, ⌀14x1.25HR 1

AR473

Copper

-

3.3/ 5

.024"17.5mm, ⌀14x1.25HR 2
