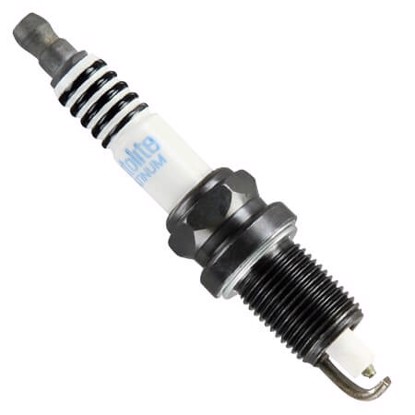

Autolite AP5405 Spark Plug

View on

Verify with Amazon ConfirmedFit before buying

Rating

3.2 / 5 Overall
Autolite	AP5405
Brand	Code
3.5 / 5 Materials
Copper	Platinum
Ground electrode	Center electrode
2.5 / 5 Design
Standard	Necked Down
Ground type	Center type

Specifications

1.3mm (.050")	3
Gap	Heat range
⌀14mm	1.25mm
Thread diameter	Thread pitch
19mm (3/4")	16mm (5/8")
Reach	Hex size
Gasket	Solid
Seat	Terminal
1	Non-Projected
Ground count	Projection

Cross-reference and alternatives

Cross-reference (3)

Alternative spark plugs found in cross-reference docs provided by manufacturers

ZFR5LP-13G

Platinum

3.8/ 5

.050"19mm, ⌀14x1.25HR 5

ZFR6FGP

Copper-Platinum

3.5/ 5

.039"19mm, ⌀14x1.25HR 6

RC12PEC5

Copper-Platinum

3.3/ 5

.049"19mm, ⌀14x1.25HR 12

Deep reference (15)

A second level of cross-reference: if A=B and B=C, then A=C

FR8VII33U

Iridium

4.5/ 5

.039"19mm, ⌀14x1.25HR 8

VK16

Iridium-Platinum

4.2/ 5

.043"19mm, ⌀14x1.25HR 16

RC12PEPB5

Platinum

3.8/ 5

.049"19mm, ⌀14x1.25HR 12

FR8VPP332V

Platinum

3.8/ 5

.050"19mm, ⌀14x1.25HR 8

7034-2

Platinum

3.8/ 5

.049"19mm, ⌀14x1.25HR 12

ZFR5LP-13G

Platinum

3.8/ 5

.050"19mm, ⌀14x1.25HR 5

APP5405

Platinum

3.5/ 5

.050"19mm, ⌀14x1.25HR 3

FR7LPP30X

Copper-Platinum

3.5/ 5

.043"19mm, ⌀14x1.25HR 7

FR8HPP30X

Copper-Platinum

3.5/ 5

.043"19mm, ⌀14x1.25HR 8

FR8LPP302X

Copper-Platinum

3.5/ 5

.043"19mm, ⌀14x1.25HR 8

RC12PEC5

Copper-Platinum

3.3/ 5

.049"19mm, ⌀14x1.25HR 12

RC12PMC4

Copper-Platinum

3.3/ 5

.039"19mm, ⌀14x1.25HR 12

AP5224

Copper-Platinum

-

3.2/ 5

.045"19mm, ⌀14x1.25HR 3

AP5405DP2

Copper-Platinum

-

3.2/ 5

.050"19mm, ⌀14x1.25HR 3

RC12LC4

Copper

2.9/ 5

.039"19mm, ⌀14x1.25HR 9

Same specs (4)

Products that have identical characteristics that impact interchangability

XP5405

Iridium-Platinum

4.2/ 5

.050"19mm, ⌀14x1.25HR 3

XP5405DP2

Iridium-Platinum

4.2/ 5

.050"19mm, ⌀14x1.25HR 3

APP5405

Platinum

3.5/ 5

.050"19mm, ⌀14x1.25HR 3

AP5405DP2

Copper-Platinum

-

3.2/ 5

.050"19mm, ⌀14x1.25HR 3
